Products : Systems : ACI - Craft Brewery - can drying system

ACI - Craft Brewery - can drying system

SKU: Craft-can

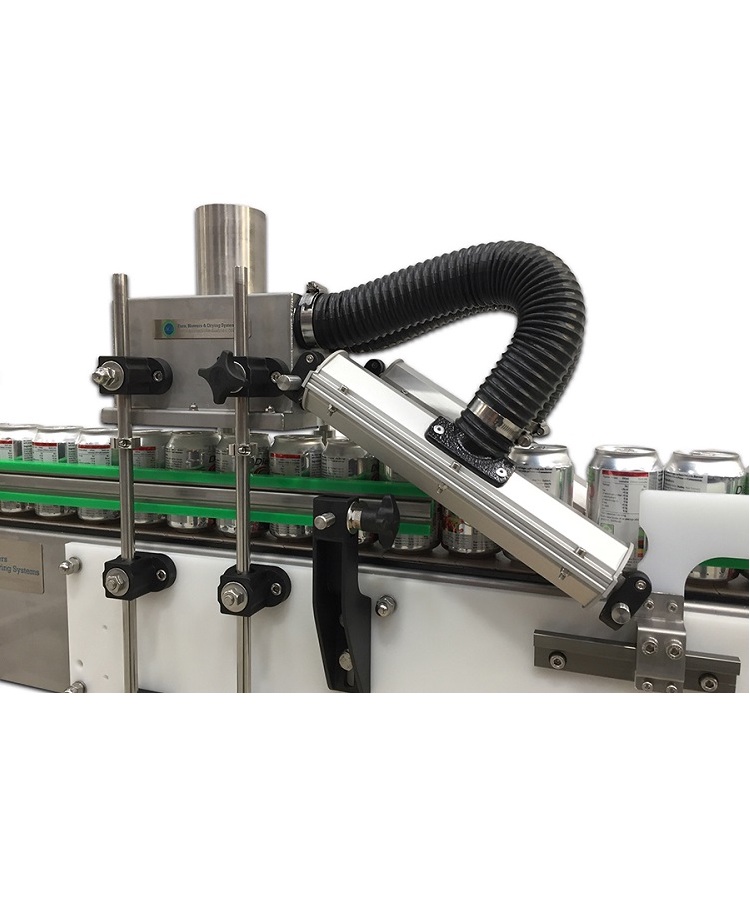

ACI - Craft Brewery - can drying system

ACI - Craft Brewery - can drying system

SKU: Craft-can
For craft and micro-brewery operations with a conveyor line

Key features

‘Out of the box’ drying solution, specifically designed to surface dry aluminium cans – whether drying for date coding or packaging

A single slot can dryer mounted on top of the conveyor to dry lids or bottoms


Manufacturer / Supplier

ACI
Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.


A complete solution

Using a small 5.5kW centrifugal, radial bladed blower, this air knife drying system is suitable for line speeds lower than 6,000 cans per hour and is designed to be easily installed, operated and maintained.

Capable of drying can sizes 330-568ml, providing a water removal efficiency figure of 96.5%, and are backed up with a 24 month warranty.

Noise levels are 87 dB(A) with the polyethylene spray cover and 90 dB(A) without. An additional acoustic enclosure is available for the blower, if required.

Comparisons to Compressed Air

More cost effective - in operation running costs reduced by as much as 90%.

Quieter – lower air pressures used reduces the expansion ratio and turbulence of the air produced.

Cleaner – blower-driven air is both dry and oil free. No expensive additional filtration required.

Safer – centrifugal blowers operate on the principle of high velocity, low pressure air which presents no danger to


Typical environment

Suitable for line speeds up to 6,000 cans per hour; capable of drying 330ml through to 568ml cans

Inclusions

Additional AK05 aluminium anodised air knives 300mm long (2x) to dry the can sides

ACI/EV APE711 (5.5kW) centrifugal blower,

Stainless steel 'Y' slot drying plenum chamber

Clamping kits

Polyethelene mounting plates

Flexible ducting

Jubilee clips

Accessories

Optional

Acoustic enclosure

Typical environment

Suitable for line speeds up to 6,000 cans per hour; capable of drying 330ml through to 568ml cans

Manufacturer / Supplier

ACI
