Ducting in the sliding rail to enable fumes to be exhausted through the rail extrusion itself.

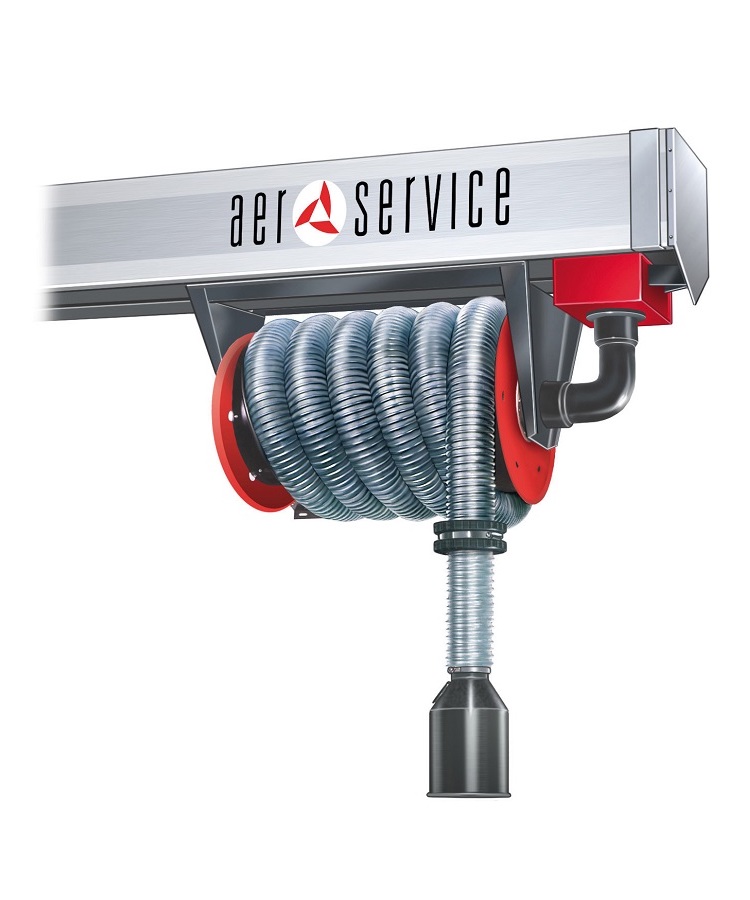

Designed for the localized extraction of vehicle exhaust fumes, this hose and reel set is on a sliding rail assembly and includes a 10 metre retractable high temperature rubber hose with 100mm diameter.
This reel system is fitted with an adaptor and trolley system designed to enable the reel to be moved along the rail, with the fumes all being exhausted through the rail extrusion itself. This option has a manual sliding rail.

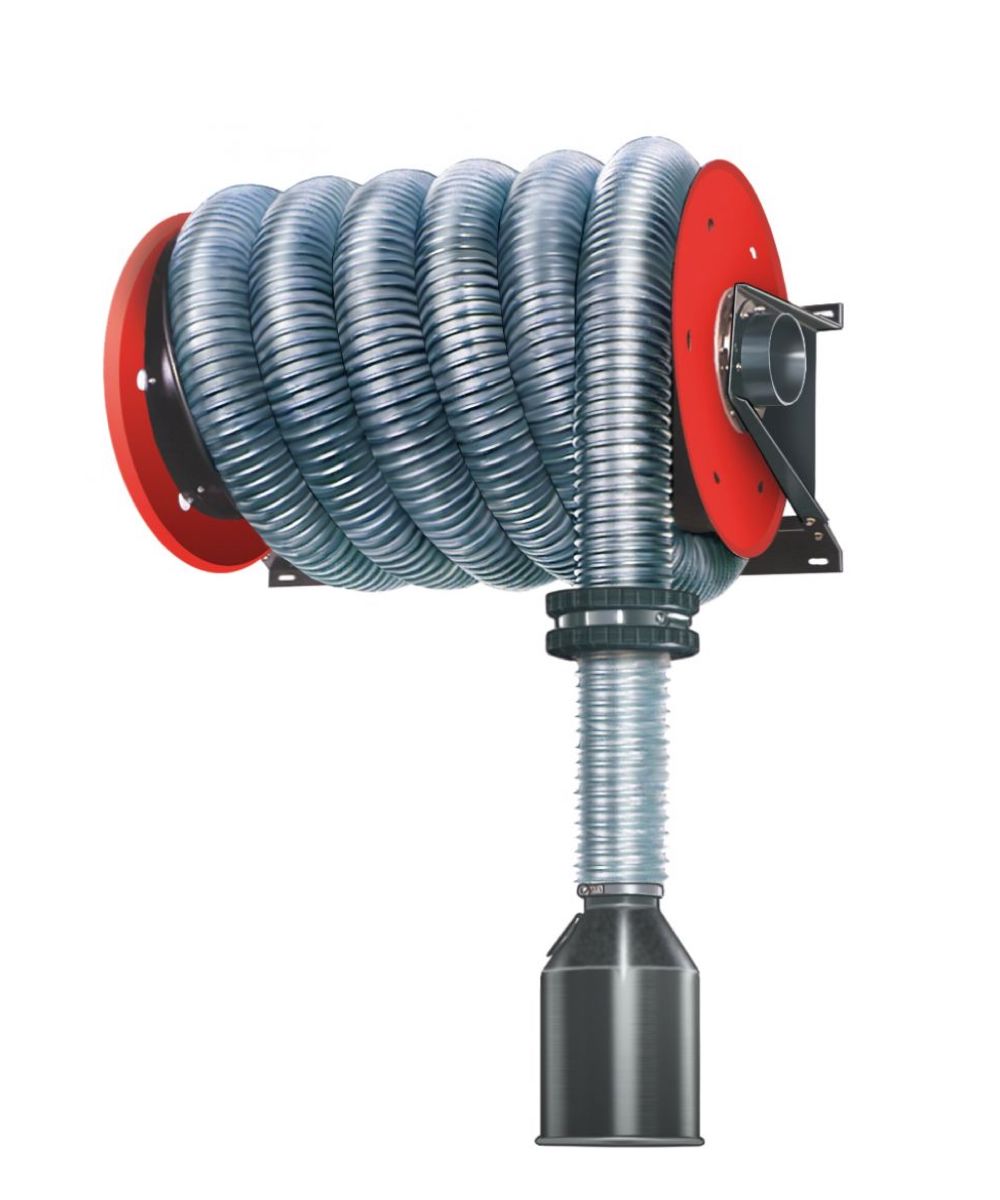

The hose reel positions a nozzle over or close to the vehicle exhaust gas pipes. The corresponding rubber or stainless steel nozzle is resistant to the high temperatures coming out from the engine of the vehicle.
The standard structure is fitted for ceiling mounting, and is made with reinforced steel for all versions.
Rotation - an innovative and exclusive rotation system made from “Rotamax” aluminium alloy, designed to permit glide and manoeuvrability in the time and conditions of use, even heavy-duty environments.
Springs - containment guard with grease facility for harmonic stainless steel springs, pre-loaded and pre-calibrated according to the lengths and diameters of the flexible hoses.
Plates and barrels - disks and drums are available in 4 different sizes to meet any possible requirements for anti-crush hose diameter and length.
Accessories - interchangeable accessories and solutions to improve the extraction efficiency. Also available are motorised retraction systems and dampers.
Hoses - TGA flexible anti-crush hoses in different lengths and diameters (75 mm - 200 mm).
Optional - special high temperature hose available for extraction of high temperature gases and fumes.

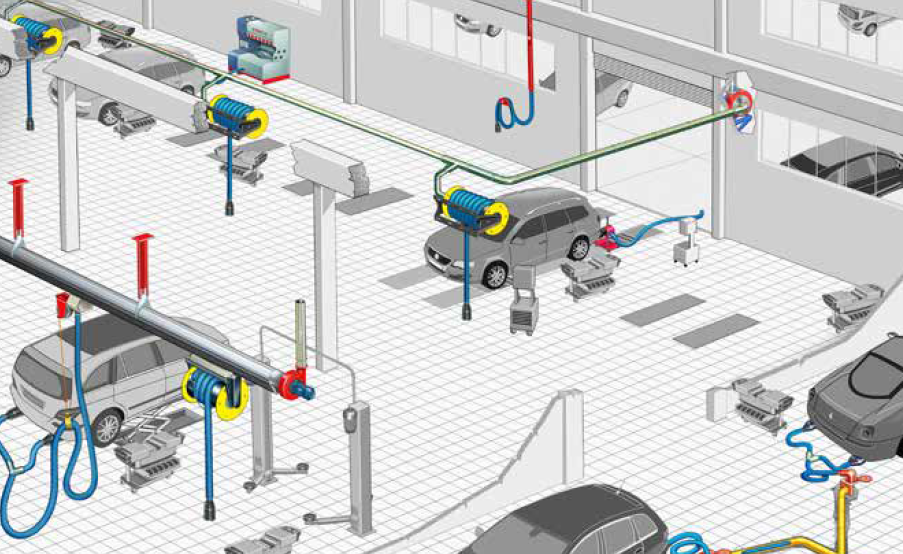

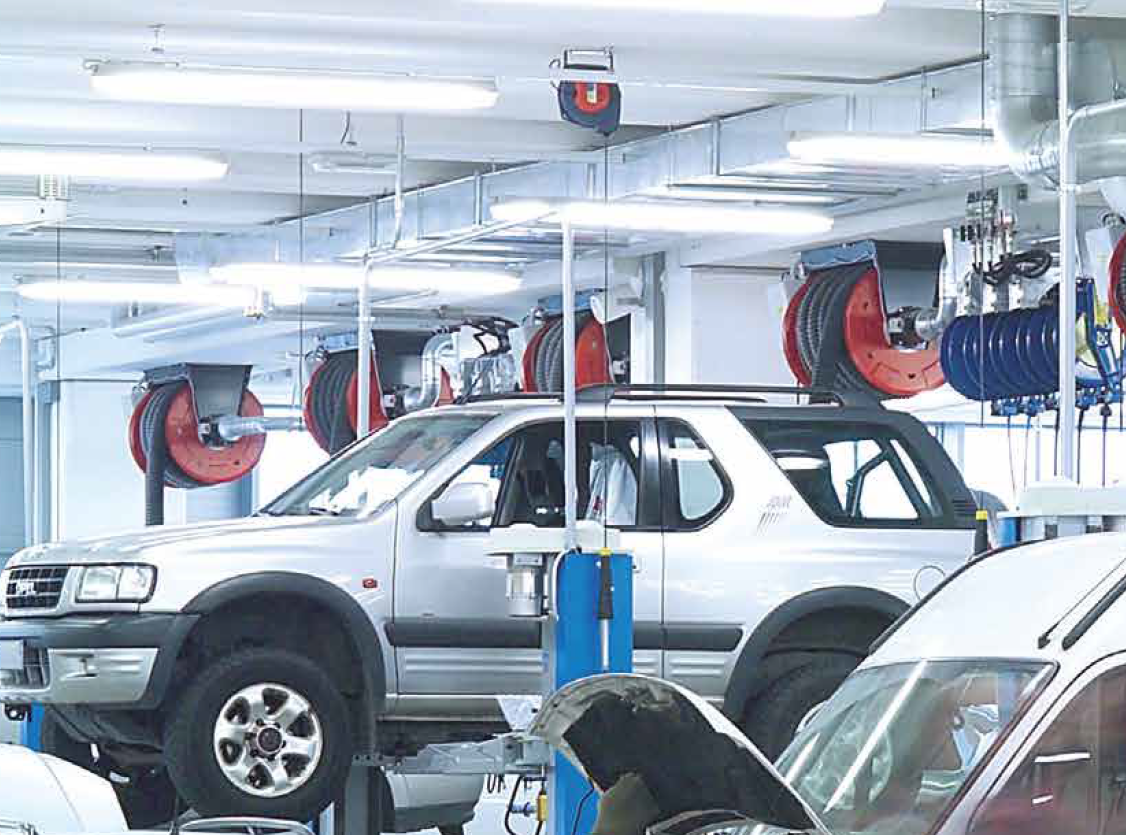

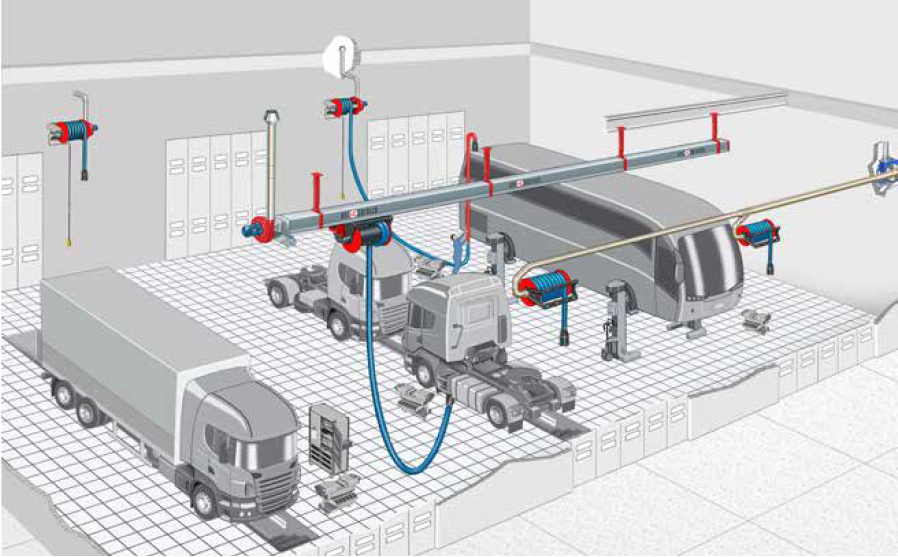

Workshop environment - localised extraction of exhaust gases from motorbikes, cars, trucks and heavy vehicles.
The Dynamic Engineering Australia sales team can provide more details about the EC Extruded Aerial Sliding Rail Duct Extraction System or the CA Aerial Sliding Rail Duct Extraction System With Square Profile on request. We will also ensure your order contains the desired hose reel(s), correct hose length, correct brackets, and any other required accessories.
You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering Australia sales team to determine what fan will work best for your situation.
Fans - high temperature fans can be provided for extra high temperature applications with specific versions available. These systems can also extract fume and dust for specific versions.
Quick Couplers - For nozzle release, in impact and temperature resistant plastic
Nozzles - A complete range for different types of mufflers
As-car kit - For twin exhaust cars consisting of 2 rubber nozzles, flex hose and "Y" fitting
Start-stop kit - Complete with micro switch wired to the junction box for automatic start up and shut down of the extraction fan
Hose kit - Galvanised sheet metal components to exhaust the extracted fumes
Electrical Panel - ON/OFF electric motor start and protection
Dampers - Manual or motorized, to be applied to hose or hose reel
Special brackets - For ceiling/wall or column mounting |
EV fan – High pressure aluminium fans
| Hose Diameter | 100mm
|
| Hose Length | 10m
|
| Extraction Flow Rate | 700m3/h |
| System Losses | 700-1100 Pa
|
Workshop environment - localised extraction of exhaust gases from motorbikes, cars, trucks and heavy vehicles.
