Portable vehicle exhaust fume extraction system for workshops where ceiling/wall mounted system does not exist

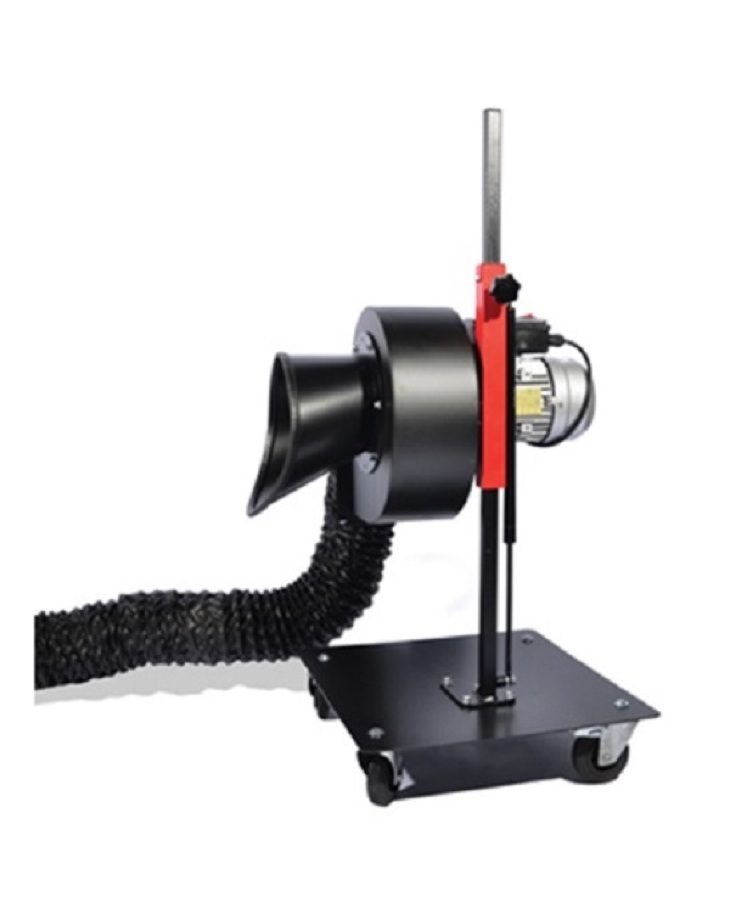

The Elemax vehicle exhaust fume extraction system is designed for closed environments which do not have wall or ceiling mounted extraction systems. With this unit, gas is expelled to the external environment through a (supplied) flexible hose.
Trolley and wheels - powder coated steel mounted on a support with wheels
Gas spring - for assisted movement of the suction chamber and positioning on the exhaust
Centrifugal fan - single suction fan directly coupled to a single-phase electric motor and cable.
Suction mouthpiece - rubber nozzle for exhaust gas extraction (single or double exhaust)
Auto workshop where localised extraction of exhaust gases from motorbikes, cars, vans and buses is required.
Y coupler for double exhausts
Single connection and suction kit (single exhaust)
Single connection - for connection to positioners
| Motor Power | 1.1kW |
| Power Supply (V/Phase/Hz) | 240/1/50 |
| Hose Diameter | 150mm
|
| Hose Length | 10m
|
| Extraction Flow Rate | 2000m3/h |
Auto workshop where localised extraction of exhaust gases from motorbikes, cars, vans and buses is required.
