Aerservices ICAF mobile filter unit (single phase) with ArmoTech arm (Ø160 x 3m)

SKU: ICAF2H0000AN0-ARMOTECH160300

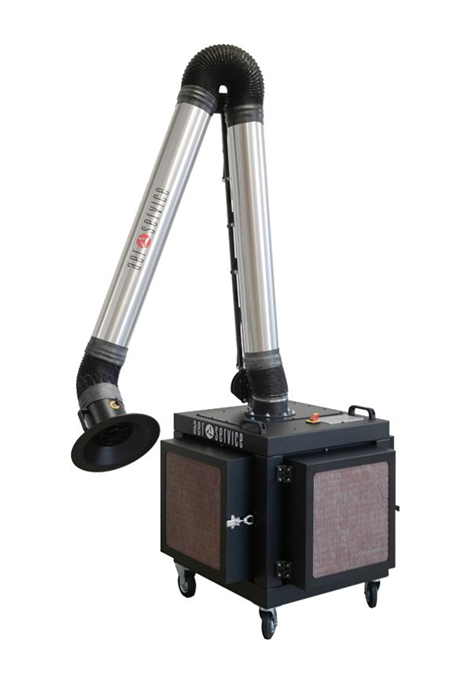

Aerservice ICAF2.2 mobile filter unit (single phase) with ArmoTech arm
Aerservices ICAF2.2 mobile filter unit with Armotech aluminium arm

Aerservices ICAF mobile filter unit (single phase) with ArmoTech arm (Ø160 x 3m)

SKU: ICAF2H0000AN0-ARMOTECH160300
A heavy duty mobile fume extractor. Comes standard with 20 filters including 24kg of active carbon and filtration efficiency of ≥99.5. Includes externally supported Armotech aluminium arm (Ø160mm x 3m).

Key features

  • 20 filters
  • Portable - on wheels
  • Heay duty fume and particulate extraction
THIS PRODUCT CAN HELP YOU MEET THE NEW (2024) AUSTRALIAN WELDING FUME EXPOSURE STANDARDS.

Manufacturer / Supplier

Aerservice Equipment

How to buy

Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.

The ICAF is designed for heavy-duty use and high concentrations of welding fumes. ICAF also filters low concentrations of gases, non-oily vapors and odors released by various applications in the industrial and chemical sectors. It is particularly suitable for industry thanks to its high performance and reduced energy consumption. (Please note, the ICAF is NOT suitable for use in potentially explosive environments.)

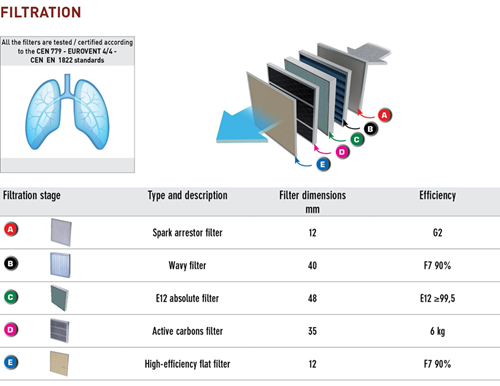

The four perimeter sides of the ICAF unit each contain multi-stage filtering sections, for a total of 20 filters:

  • an anti-spark filter
  • a corrugated glass fiber filter
  • an E12 absolute filter
  • an activated carbon filter - 24kg
  • a high efficiency flat filter


Heavy duty - the ICAF structure is made of heavy-gauge powder-coated steel for above-average resistance and sturdiness.

Low energy consumption - The 1.5 kW plug-fan with low energy consumption is designed for high performance and heavy-duty use.

Mobile - the unit is supplied with wheels already mounted and ready for use.

The ICAF can mount the ARMOTECH rigid articulated arm with a diameter of 125 - 160 - 200 mm depending on the models and specific use.

Other versions are available in three-phase, or with an automatic start/stop function.

Typical environment

  • Welding - heavy-duty use and high concentrations of welding fumes.
  • Industrial and chemical - filtering of low concentrations of gases, non-oily vapors and odors, VOCs

Accessories

Required

Armotech arm

Technical details

Motor Power 1.5kW
Power Supply (V/Phase/Hz) 240/1/50
Extraction Flow Rate 3500m3/h
Filter Efficiency >99.5%
Noise 73 dBa

Typical environment

  • Welding - heavy-duty use and high concentrations of welding fumes.
  • Industrial and chemical - filtering of low concentrations of gases, non-oily vapors and odors, VOCs

Manufacturer / Supplier

Aerservice Equipment

Packaging

Weight: 182kg
Height: 850mm
Width: 950mm
Depth: 950mm

Downloads

AerServices ICAF Technical Data Sheet 2024
