Plymoth P-561 CF-Eco Central Filtered Extraction Unit (3 Phase)

SKU: P-561

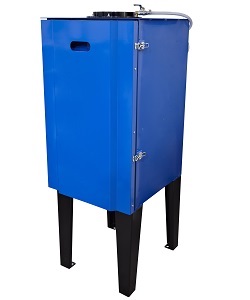

Product shot of Plymoth CF-Eco Central Filter on legs
Plymoth CF-Eco Central Filtered Extraction Unit

Plymoth P-561 CF-Eco Central Filtered Extraction Unit (3 Phase)

SKU: P-561
A central filtered welding/soldering fume extractor with JetPulse self-cleaning system

Key features

Affordable, central filtered fume extractor

Can be used with multiple arms

THIS PRODUCT CAN HELP YOU MEET THE NEW (2024) AUSTRALIAN WELDING FUME EXPOSURE STANDARDS.

Manufacturer / Supplier

Plymoth

How to buy

Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.

The CF-Eco JetPulse Central Filtered Extractor is made for the extraction of welding and soldering fume, and lighter dust, as an affordable effective solution for local exhaust ventilation (LEV) or at-source extraction. It is suitable as a central filtered extraction system serving multiple arms (Ø75mm up to Ø200mm).

Mechanical filtering - filter cartridge has a separation efficiency of over 99.9%.

Self-cleaning - built-in compressed air cleaning system (compressed air supply required)

Typical environment

Welding, soldering, workshop

Inclusions

Filtered extraction unit

Built-in compressed air filter cleaning arrangement and valve

New cartridge filter

Dust collection tray

4m electrical 15 amp cable and 15 amp Australian plug

Accessories

Required

Flexi Extractor Arm c/w 360˚ swivel mounting bracket - a selection of suitable wall-mounted arms are listed below.

Note: multiples of these arms can be used, however, depending on the size and quantity maybe not all concurrently - please ask Dynamic Engineering Australia to advise on quantities and sizes for your application

  • P-007 - Ø160mm / 2 metre
  • P-008 - Ø160mm / 3 metre
  • P-009 - Ø160mm / 4 metre
  • P-010 - Ø160mm / 5 metre
  • P-143 – Ø200mm / 2 metre
  • P-144 - Ø200mm / 3 metre
  • P-145 - Ø200mm / 4 metre
  • P-146 - Ø200mm / 5 metre
Optional

P-544 - HEPA Filter 23m2

Replacement parts

P-541 – Replacement Filter Cartridge

Technical details

Motor Power 1.1kW
Power Supply (V/Phase/Hz) 415/3/50
Extraction Flow Rate 1400-1800m3/h
Filter Efficiency 99.9%

Typical environment

Welding, soldering, workshop

Manufacturer / Supplier

Plymoth

Packaging

Weight: 86kg
Height: 600mm
Width: 1100mm
Depth: 1100mm

Assembled

Weight: 86kg
Height: 1330mm
Width: 520mm
Depth: 1200mm

Downloads

Plymoth - CF-Eco Central Filter - Owners Manual
Plymoth - CF-Eco Central Filter - Technical Datasheet
