Plymoth P-143 IS Fume Extraction Arm dia.200mm x 2m

SKU: P-143

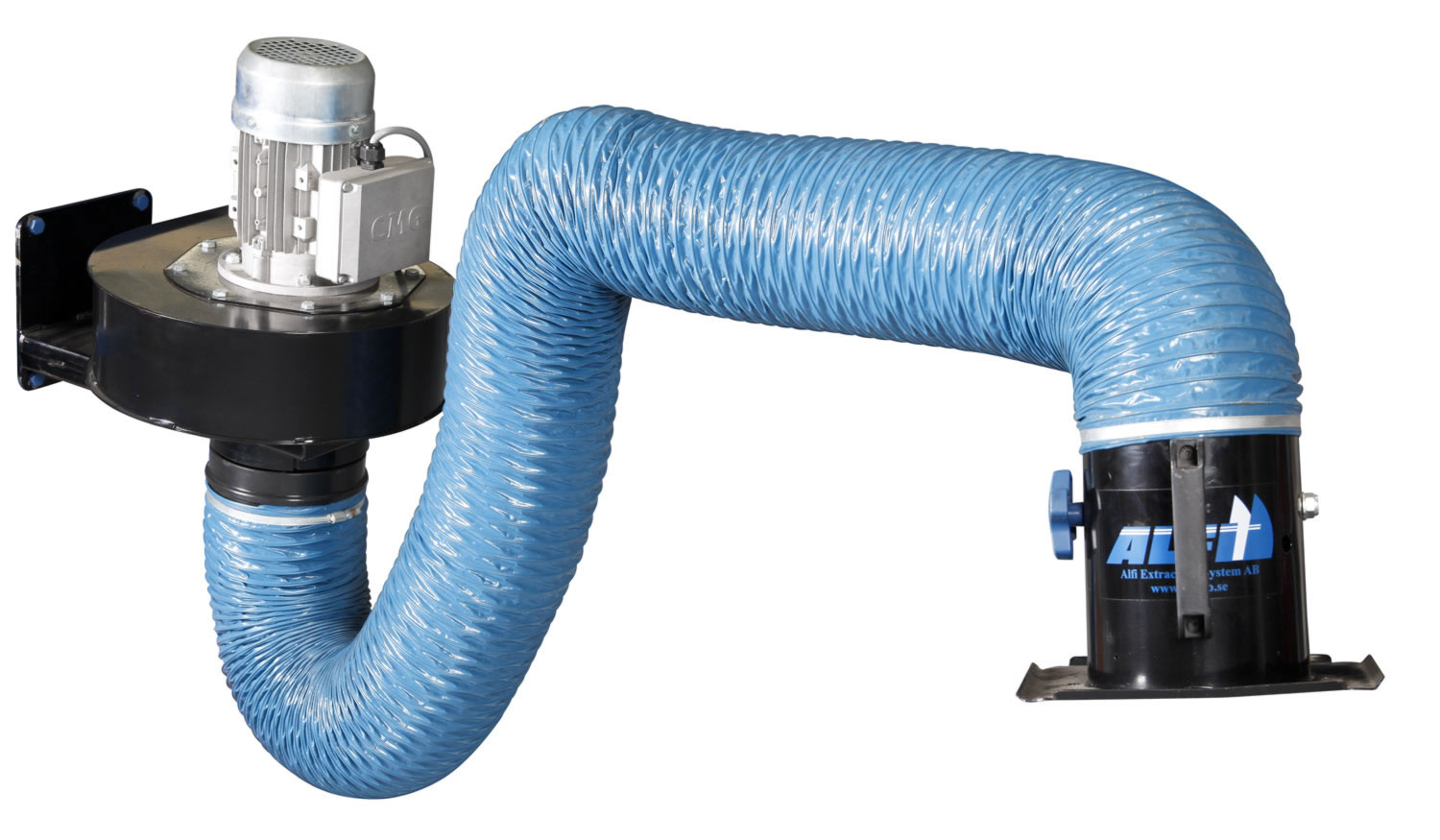

Product shot of the Plymoth fume extraction arm - wall mounted (hanging) - with extraction fan
Wall mounted with extraction fan

Plymoth P-143 IS Fume Extraction Arm dia.200mm x 2m

SKU: P-143
Self-supporting articulated hanging fume extraction arm for heavy smoke, dust and gases

Key features

200mm diameter for heavy smoke, dust and gases

Manufacturer / Supplier

Plymoth

The Plymoth ALFI internally supported (IS) fume extraction arm (P-143) is an efficient and versatile benchwork extractor arm. It is designed to suit our pole and wall-mounted fans.

Internally supported hanging fume extraction arms are rigid during service and retractable for convenience. They provide a robust and flexible fume extraction solution.

Flexible arm - the inner parallelogram technology with unique spring-controlled lock makes the arm incredible easy to move and to retain its position for precise manoeuvrability

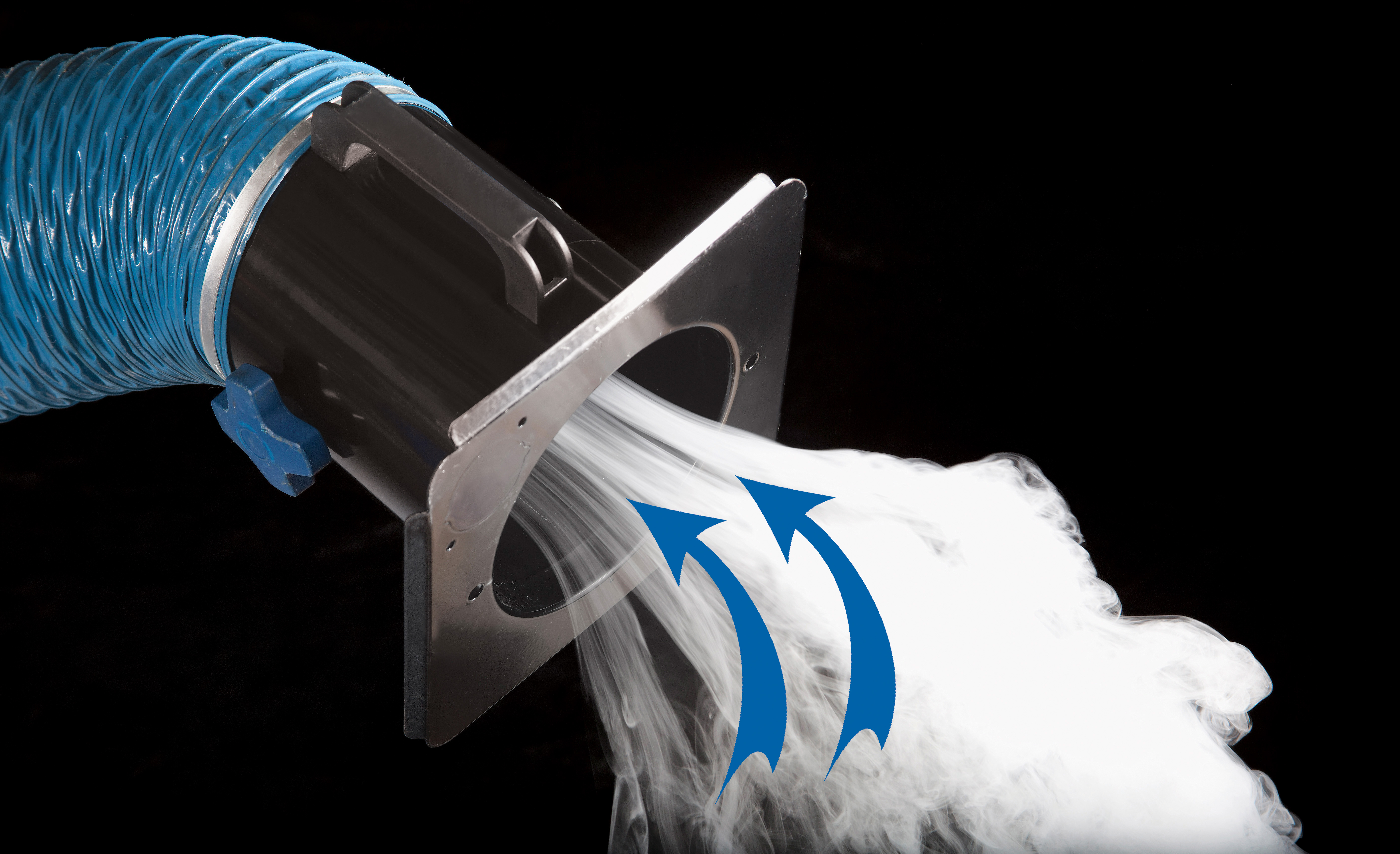

Durable - high temperature-resistant hose and steel hood can withstand sparks, chemicals and heat

Action radius - the extractor hood can be angled more than 110˚ in all directions

Spotlight - LED lighting options can be easily fitted onto the hood

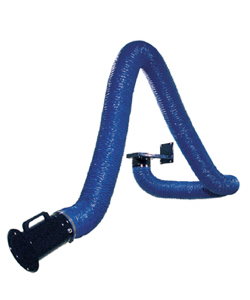

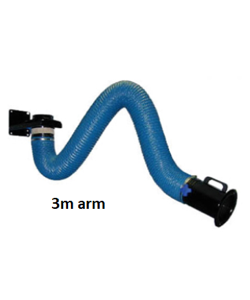

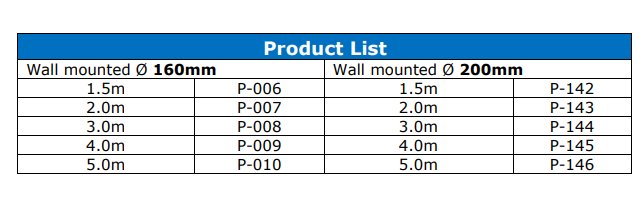

Flexible arm options - Various lengths available up to 5m long and 160mm diameter option also available


Typical environment

Welding and work cubicles, schools, workshops and car repair shops, areas with low ceilings

Inclusions

Wall bracket

Hose

Hood with handle

Damper (for volume control)

Internal support mechanism

Accessories

Required

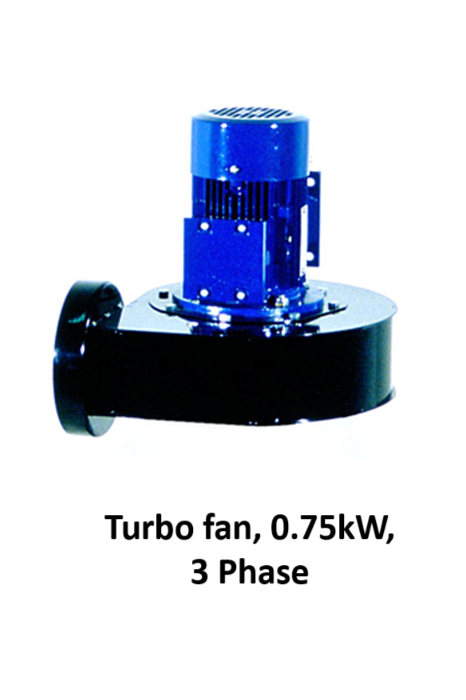

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Filter

Spotlights - LED lighting for the hood

Extensions - up to 4m extension arms and extension ducting and ducting with magnetic hood

Technical details

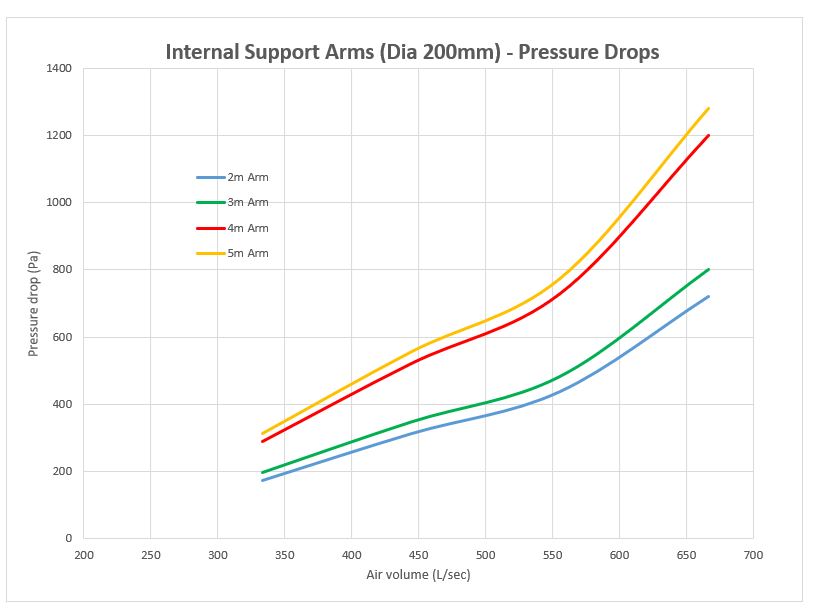

System Losses System Losses
Support Type Internal
Mount Type Wall
Diameter 200mm
Length 2m

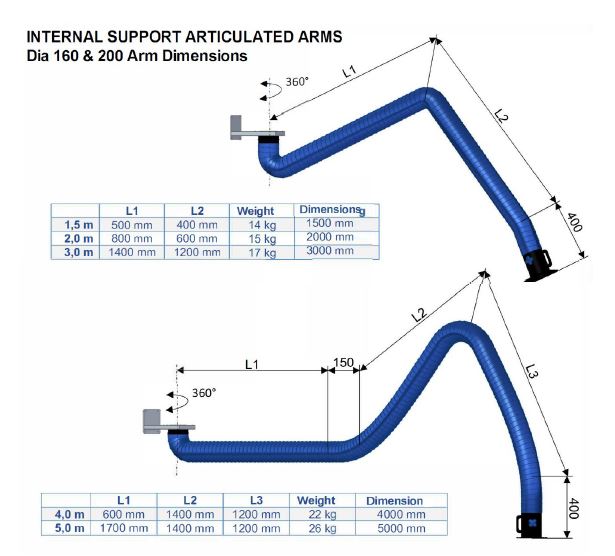

System Dimensions System Dimensions

Typical environment

Welding and work cubicles, schools, workshops and car repair shops, areas with low ceilings

Manufacturer / Supplier

Plymoth

Packaging

Weight: 17kg
Height: 325mm
Width: 860mm
Depth: 245mm
