Plymoth P-613 Porta-Flex 200 Portable Fume Extractor - Auto Start

SKU: P-613

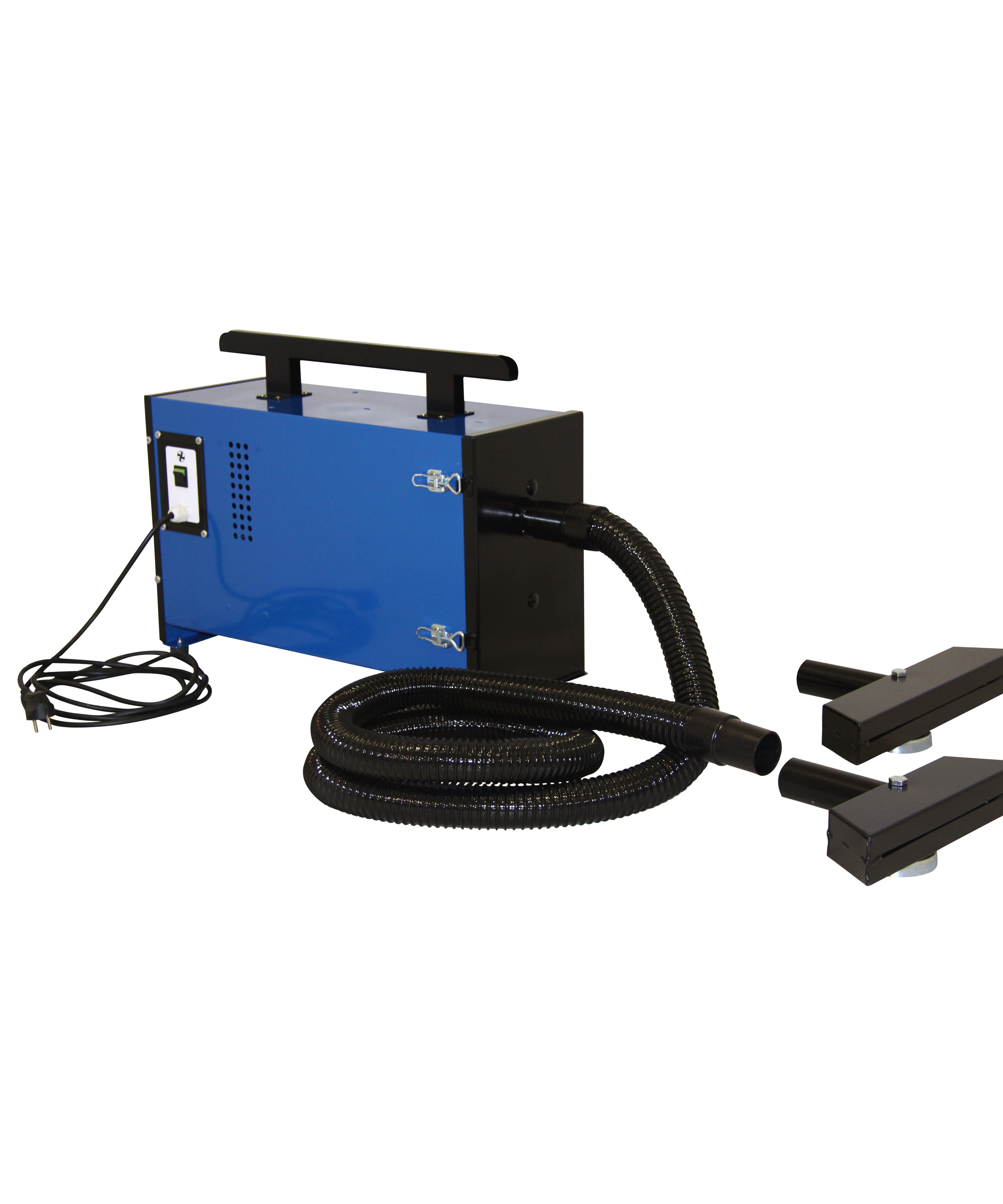

A product shot of the Plymoth Porta-Flex with cable, hose and two nozzles
Plymoth Porta-Flex portable fume extractor

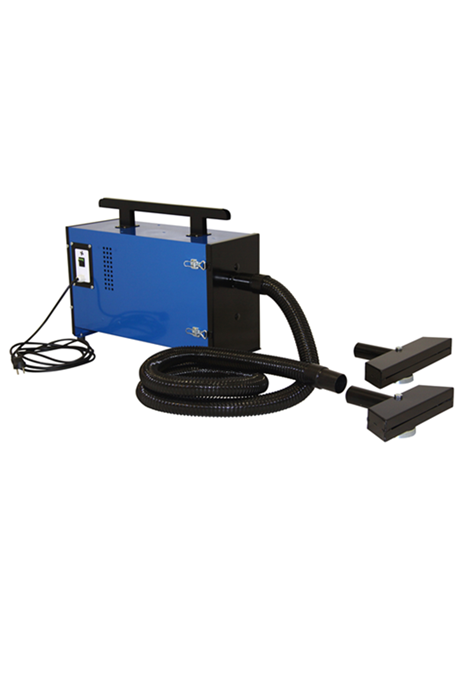

Plymoth P-613 Porta-Flex 200 Portable Fume Extractor - Auto Start

SKU: P-613
A portable filtered welding fume extractor with auto start

Key features

Portable, auto-start- the extraction unit starts when welding commences, and stops when welding ceases

Manufacturer / Supplier

Plymoth

The Porta-Flex 200 - Auto Start is a portable fume extractor and filter suitable for welding in confined spaces or difficult to reach locations. It provides local exhaust ventilation (LEV), or at-source fume extraction, for dangerous welding fumes, vapours, and other workplace emissions. The Porta-Flex 200 - Auto Start is perfect for service and maintenance jobs where remote or mobile welding is required - a user friendly and flexible piece of welding fume extraction equipment.

Control - configured to auto start and stop fume extraction with welding activity

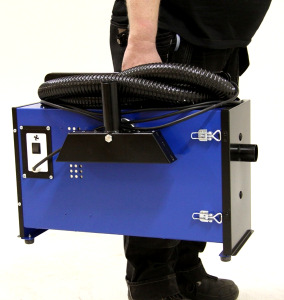

Easy to carry - the PortaFlex 200 - Auto Start has a weight of just 15kg so it is extremely easy to carry.

Portable - the hose can be rolled around the handle and the magnetic nozzle fixed to the outside of unit. It's just like a portable workplace vacuum cleaner!

Efficient filtration - built-in efficient filter with long-life filter cartridge. The cartridge can be easily cleaned or changed when required.

Affordable and useful - the PortaFlex 200 is simple, effective and cheap, with a choice of 4 magnetic nozzle sizes.


Typical environment

Welding, working in confined spaces, service and repair work, remote locations

Inclusions

Auto start/stop sensor

Filtered extraction unit and handle

High performance fan

2.5m extraction hose

Built-in filter and cartridge

4m electrical cable with 15 amp Australian plug

Accessories

Required

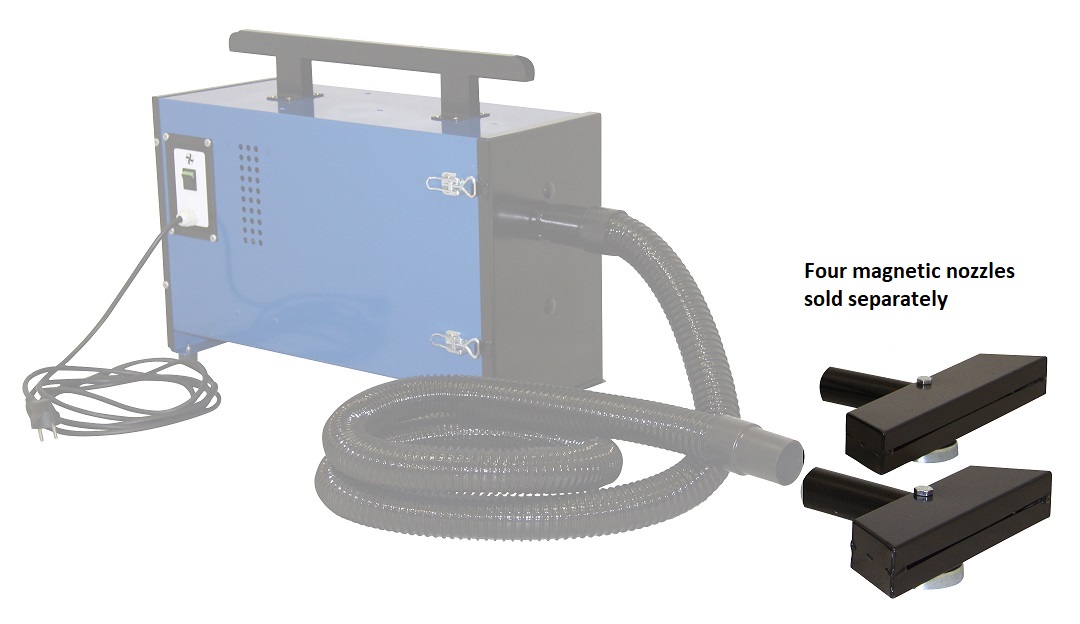

Nozzles (select your required size)

  • P-615 - Magnetic Nozzle 400mm
  • P-616 - Magnetic Nozzle 300mm
  • P-617 - Magnetic Nozzle 200mm
  • P-618 - Magnetic Nozzle 80mm
Optional

P-620 - HEPA Filter H13 12m2

Replacement parts

P-619 - Replacement filter

Technical details

Motor Power 1kW
Power Supply (V/Phase/Hz) 240/1/50
Noise 70 dBa

Typical environment

Welding, working in confined spaces, service and repair work, remote locations

Manufacturer / Supplier

Plymoth

Packaging

Weight: 20kg
Height: 600mm
Width: 675mm
Depth: 320mm
