For hose reels, ducts and wall systems.
Low noise, low energy consumption.

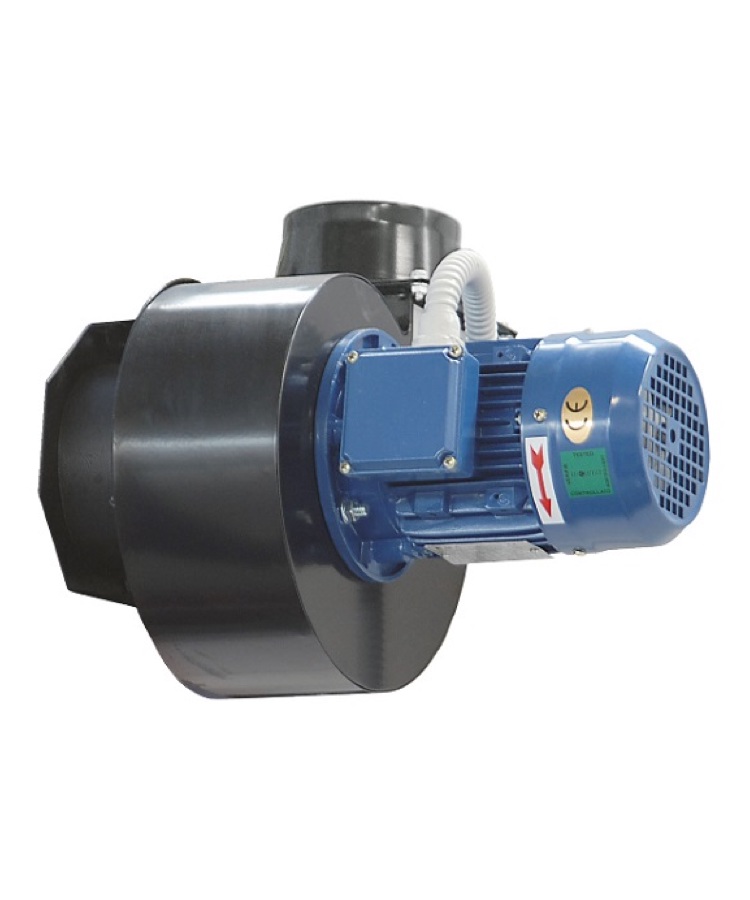

The EV18 is a single inlet centrifugal fan suitable to move air with low dust concentration. The low flow and low pressure characteristics allow for a variety of uses for this fan (with extraction arms) to guarantee optimal yields (low energy consumption) with low noise impact.
Available as single or three phase.
Structure: made of painted sheet steel

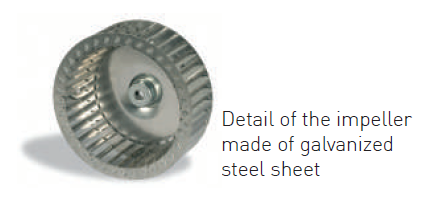

Impellers: reinforced galvanized impeller with forward blades (scirocco type), statically and dynamically balanced according to ISO Standards, keeping noise and vibrations at minimum levels.
For use in welding, industry and automotive environments where there is a requirement for fume and light dust extraction.
Centrifugal fan
Please note: extraction arms must be ordered separately

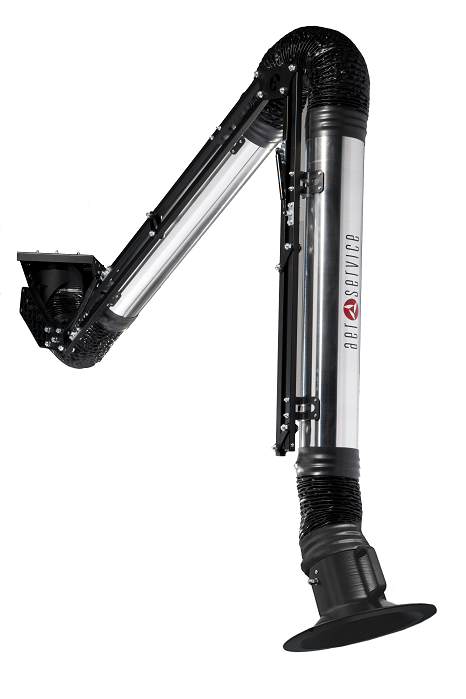

Articulated self-supporting fume extraction arm
Soundproof cabin for centrifugal fans - without ventilation
| Motor Power | 1.5kW |
| Motor RPM | 2850 |
| Power Supply (V/Phase/Hz) | 240/1/50 | 415/3/50 |
| Extractor Flow Rate | 1220-1370m3/h |
| Temperature Range
|
-25 | 70ºC |
| Noise | 74.1 dBa
|

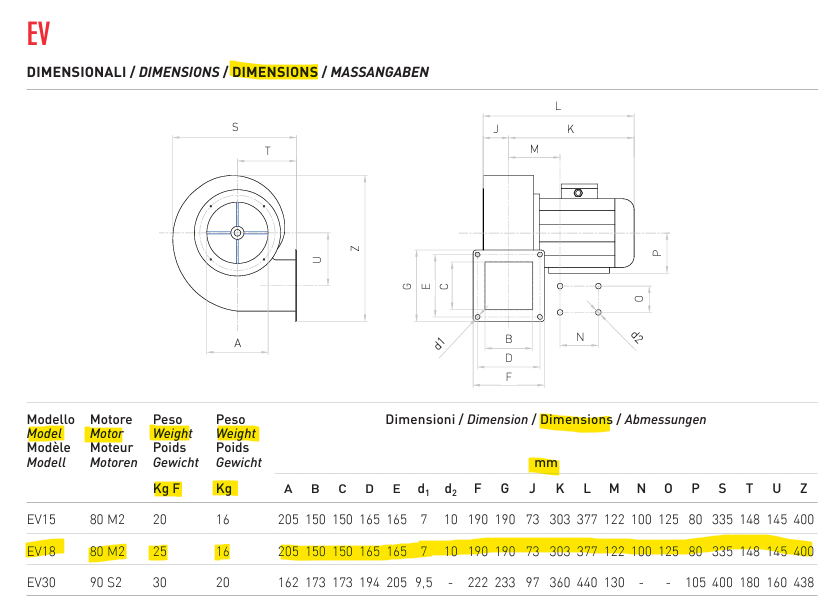

| Dimensions |
|

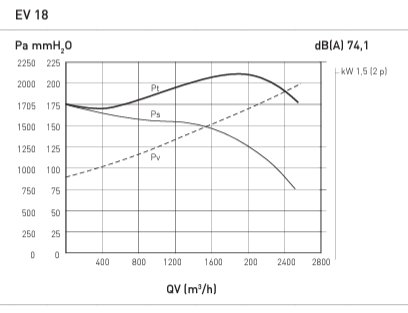

| Performance Curves |
|
For use in welding, industry and automotive environments where there is a requirement for fume and light dust extraction.
