AerService ArmoTech Articulated Arm Dia160mm x 2m

SKU: ARMOTECH160202

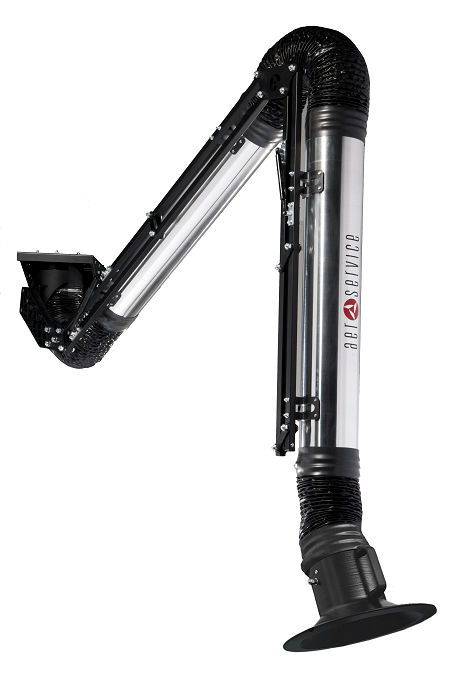

Product shot of the AerServices aluminium ArmoTech articulated arm for welding
Product shot of the AerServices aluminium ArmoTech articulated arm for welding

AerService ArmoTech Articulated Arm Dia160mm x 2m

SKU: ARMOTECH160202
A self-supporting articulated arm with aluminium hose for extraction of welding fumes

Price starts at

Key features

Wall mounted

Manufacturer / Supplier

AerService Equipment

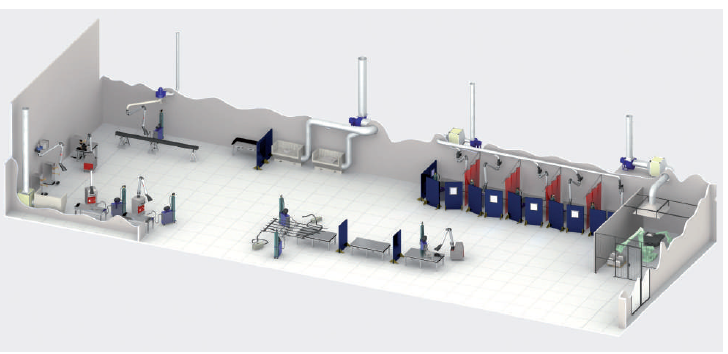

The articulated extraction arm has long since replaced the traditional extraction systems (hoods, suction walls) in the industrial sector, with the aim of reducing installation costs, limiting energy consumption to the benefit of running costs and improving the extraction to safeguard the operator’s health.

The ArmoTech arm is made of light aluminium alloy and has a rigid aluminium hose. It is extremely manoeuvrable, stable and strong due its self-supporting external pantograph structure balanced with double sealed gas pistons. It can be completed with different types of nozzles depending on the application.

Please note: This kind of extraction arm is not to be used for dust or liquids.

The Armotech is available in 3 versions:

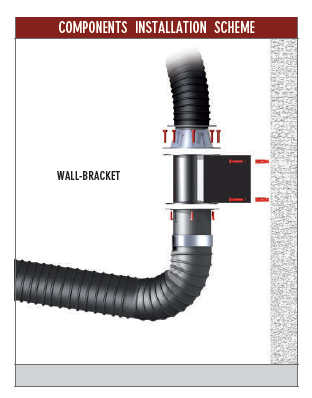

Armotech for wall-mounting (IBSA): with a painted steel shelf for fastening and connection to the fumes exhaust pipe

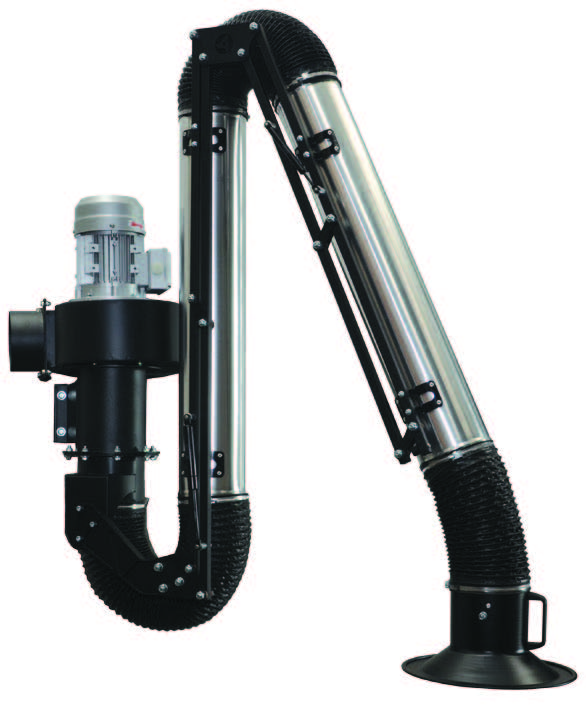

Armotech for wall fitting with extraction fan (IBSAV): with painted steel bracket for wall-fitting and connection to the fumes exhaust pipe

Armotech for worktops (IBSAC): for application on trolleys or horizontal surfaces (eg down-draught bench)


Typical environment

Workshop environment - extraction of fumes and micro-particulates from welding (MIG/MAG, pulsed, electrode).

Inclusions

Articulated arm

Please note: nozzles and brackets must be ordered separately

Accessories

Required

Nozzle

Bracket

Optional

Sleeve for hose connection Ø125mm | 160mm | 200mm

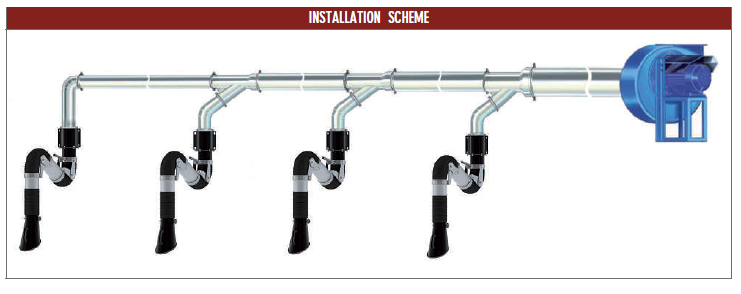

EV series electric centrifugal extraction fan

PAB extender

Electrical protection panels for extraction fans

Floor standing support

Technical details

Extraction Flow Rate 1000-1200m3/h
System Losses 700 Pa
Support Type External
Mount Type Wall
Diameter 160mm

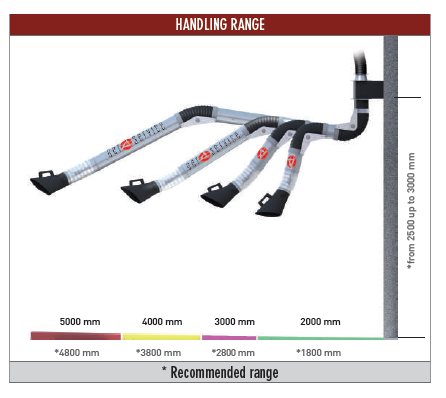

Length 2m

Typical environment

Workshop environment - extraction of fumes and micro-particulates from welding (MIG/MAG, pulsed, electrode).

Manufacturer / Supplier

AerService Equipment

Packaging

Weight: 8kg
Height: 280mm
Width: 1020mm
Depth: 390mm
