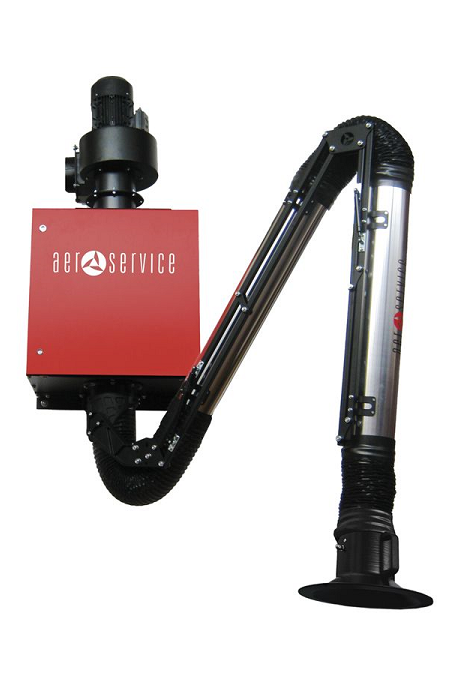

Products : Filtered Wall Mounted : AerService ICAP 2.2H wall-mounted filtered fume extractor with E12 filter - 3PH

AerService ICAP 2.2H wall-mounted filtered fume extractor with E12 filter - 3PH

SKU: ICAP2H1000AA0
AerService ICAP 2.2H wall-mounted filtered fume extractor with E12 filter - 3PH

AerService ICAP 2.2H wall-mounted filtered fume extractor with E12 filter - 3PH

SKU: ICAP2H1000AA0
A wall-mounted filtered fume extractor for welding fumes, for use with a self-supporting articulated, aluminium arm

Key features

Three stage filtering with metallic and acrylic filters

Manufacturer / Supplier

Aerservice Equipment
Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.


The ICAP filtered fume extractor has been designed to extract welding fumes in places where welding work is carried out on an occasional basis, for example, spot welding or seam or arc welding. It is designed to be local exhaust ventilation (LEV), at-source fume extraction.

The extracted fumes initially pass through a plenum which slows the flow of air and allows its correct passage through the filters. The filters consist of a series of metallic and acrylic components which guarantee maximum levels of filtration, and vary depending on the version of the machine. With the inclusion of an activated 10kg carbon filter (see Optional Accessories below), deodorisation can be achieved.


Typical environment

Low-medium concentrations of pollutants, where intermittent working occurs

Inclusions

Filter unit

External brackets for wall mounting

E12 filter (99.5% eff)

Accessories

Required

Fume extraction arm:

  • Armotech aluminium articulated arm (recommended 3m Ø160mm - ARMOTECH160301)
  • Armoflex flexi-hose articuated arm (recommened 3m Ø160mm - ARMOFLEX160301)

Optional

Active carbon filter - for deodorizing or capturing volatile substances like VOS, VOC

Single-phase 240/1/50 version

Choice of self-supporting arm sizes - 2-4m

Articulated arm extensions (PAB)

H13 filter (99.95% eff)

Typical environment

Low-medium concentrations of pollutants, where intermittent working occurs

Manufacturer / Supplier

Aerservice Equipment

Packaging

Weight: 100kg
Length: 510mm
Width: 760mm
Height: 750mm
