AerService AER201 portable filtered fume extractor

SKU: AER20100000000

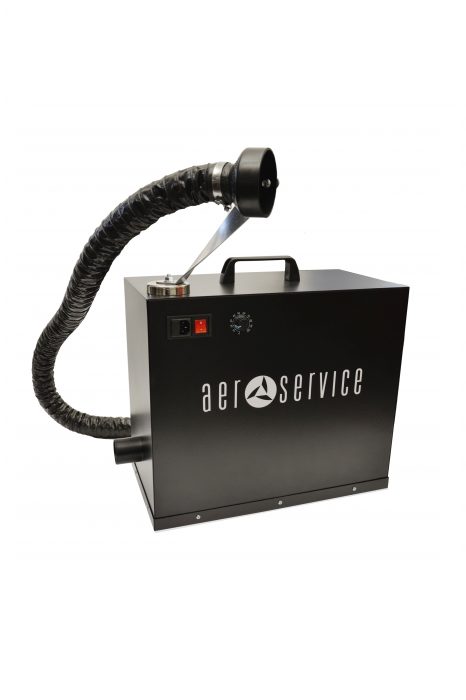

A product shot of the AerServices AER201 portable filter unit for welding
AER201 portable filtered fume extractor

AerService AER201 portable filtered fume extractor

SKU: AER20100000000
A portable welding fume extractor with F5 filter (efficiency 85%) and activated carbon filter

Key features

Portable - hand held, weighs <18kg

Ideal for remote work or in confined space

3-stage filtration standard including activated carbon filter

Manufacturer / Supplier

AerService Equipment

The AER201 portable welding fume extrator is for use where a worker is at risk of breathing in welding fumes with medium-low concentrations of pollutant while working in confined spaces or remote from the workshop.

Tough steel structure

Handle - for ease of transportation

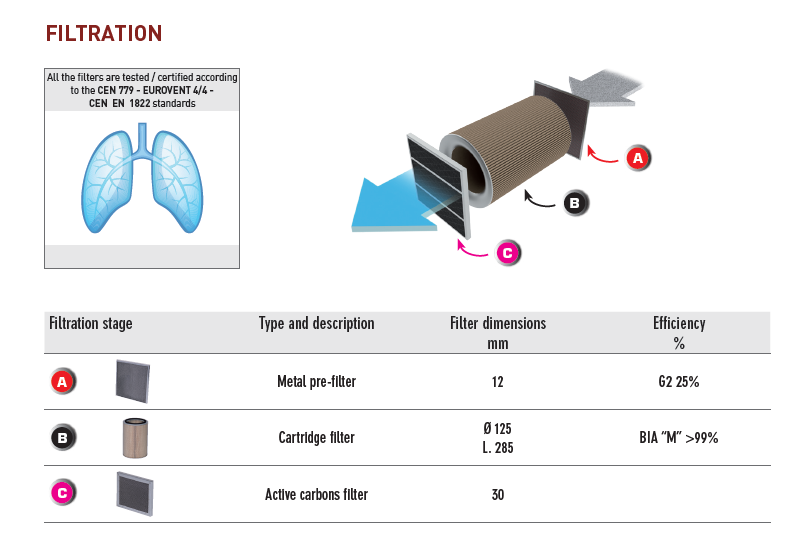

Filter - 3-stage filtration with a metal anti-spark pre-filter, intermediate filter(s), and an activated carbon filter. A HEPA filter is optional.

Versatile - allows for second outlet ducting if required - dia 55mm hose


Typical environment

Closed-in environments or areas that are difficult to reach with normal smoke reduction systems

Inclusions

  • Flexi-tubing hose - dia 55mm x 2 metre length
  • Plastic suction nozzle with magnetic holder
  • 3 stage filters including activated carbon filter

Accessories

Optional


Technical details

Motor Power 1.1kW
Power Supply (V/Phase/Hz) 240/1/50
Motor RPM 30000
Filter Efficiency 85%
Noise 72 dBa

Typical environment

Closed-in environments or areas that are difficult to reach with normal smoke reduction systems

Manufacturer / Supplier

AerService Equipment

Packaging

Weight: 18kg
Height: 450mm
Width: 800mm
Depth: 600mm
