Home : Products : Mobile Fume Extractors (Filtered ) : AerService EVO2.2 mobile filter with ArmoTech arm (D160 X 3M)

AerService EVO2.2 mobile filter with ArmoTech arm (D160 X 3M)

SKU: EVO22H0000AA0-ARMOTECH160300

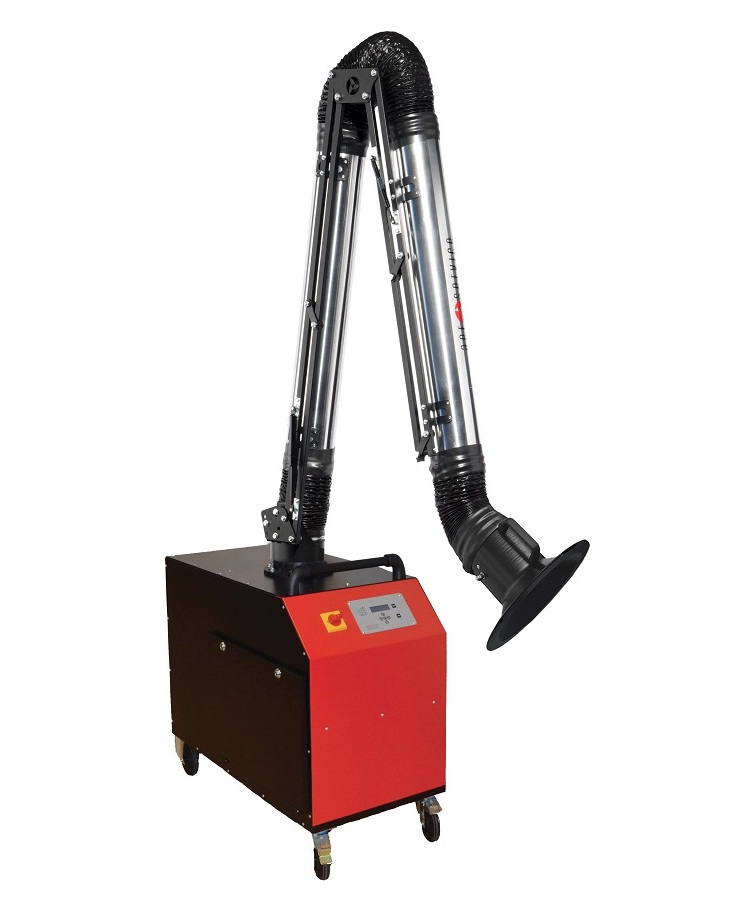

Product shot of the AerService EVO2.2 mobile filter with Armotech arm
AerService EVO2.2 mobile filter with ArmoTech arm

AerService EVO2.2 mobile filter with ArmoTech arm (D160 X 3M)

SKU: EVO22H0000AA0-ARMOTECH160300
A compact but powerful mobile filter unit with EPA E12 filter (eff. 99.5%) and 3m self-supporting articulated arm for extracting welding fumes

Key features

Compact but powerful mobile filter with EPA E12 filter

Manufacturer / Supplier

AerService Equipment

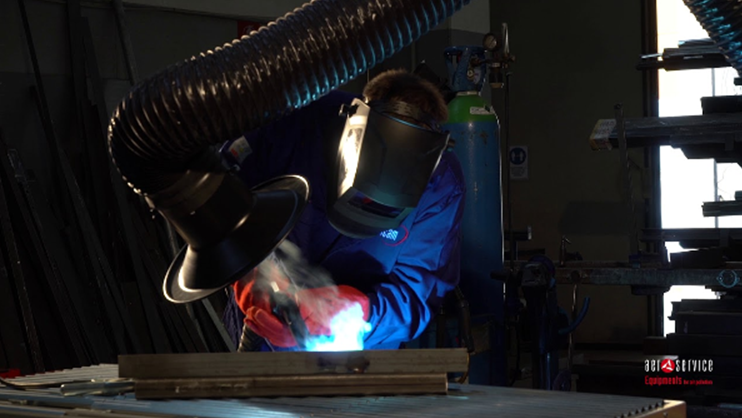

The mobile EVO 2.2 filtering unit can move easily between work areas. Equipped with a self-supporting articulated arm, it effectively captures fumes at source - it is designed to be local exhaust ventilation (LEV).

It comes standard with an EPA filter E12 (efficiency of 99.5% ) and a generous absolute filter to return clean air to the work environment.

The EVO2.2 is NOT suitable for activated carbon filter (not suitable to filter VOCs)

Tough structure - powder-coated steel sheet metal structure with wheels and handles

Digital control panel - user-friendly with alarm log and hour-meter

Electronic board - in a separate environment protected by the airflow circuit

High efficiency centrifugal electric fan - located downstream of the filter section in a special sound-proofed compartment

Filters - a series of metal and rigid bag filters for final class: E12 - 99.5% filtration efficiency

Spark arrestor - is standard supplied.


Typical environment

Where medium concentrations of welding fumes and particulate are produced. Unit can be easily moved between work stations.

Inclusions

  • EVO2.2 filter unit
  • Spark arrestor (metal filter)
  • Intermediate filter
  • EPA E12 filter (efficiency 99.5%)
  • dia 160mm x 3 metre self-supporting articulated aluminium arm (ArmoTech) with hood and damper

Accessories

Optional
  • dia 160mm x 2 metre self-supporting articulated arm (ArmoTech) with hood and damper
  • dia 160mm x 4 metre self-supporting articulated arm (ArmoTech) with hood and damper

Replacement parts

RF0EVO2200000 - set of replacement filters

Technical details

Motor Power 1.1kW
Power Supply (V/Phase/Hz) 240/1/50
Filter Efficiency 99.5%
Noise 69 dBa

Typical environment

Where medium concentrations of welding fumes and particulate are produced. Unit can be easily moved between work stations.

Manufacturer / Supplier

AerService Equipment

Packaging

Weight: 85kg
Height: 856mm
Width: 520mm
Depth: 835mm
