Portable - on wheels, mobile
EPA filter standard
Carbon filter optional

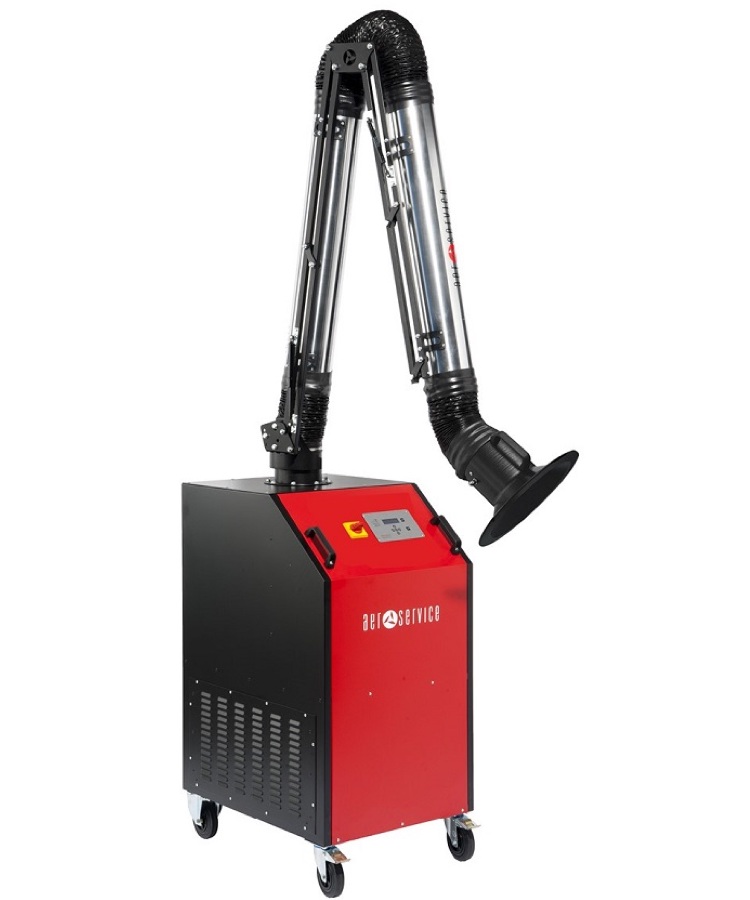

The UNI 2.2 is a trolley-mounted, portable welding fume extraction system with a self-supporting articulated arm, and optional filters, for use where a worker is at risk of breathing in welding fumes when working in confined spaces or remote from the workshop. It is designed to be local exhaust ventilation (LEV), at-source fume extraction.
The UNI 2.2 is suitable for an active carbon filter - can filter VOCs.
Tough structure - powder coated steel sheet structure with wheels and handles
Digital control panel - with alarm log and clogged filter alarm
Electronic board - in a separate environment protected by the air circuit
High efficiency centrifugal electric fan - located downstream of the filter section in a special sound-proofed compartment
Where medium concentrations of welding fumes and particulate are produced, and where a portable fume extraction system is required to share between workspaces
Cartridge filter - polyester cartridge filter for high filtering efficiency (99.5%)
Electrostatic filter - long life electrostatic filter cell for high filter efficiency (99.5%)
Carbon deodorizing post-filter
| Motor Power | 1.1kW |
| Power Supply (V/Phase/Hz) | 240/1/50 |
| Extraction Flow Rate | 2250m3/h |
| Filter Efficiency | 99.5%
|
| Noise | <70 dBa
|
Where medium concentrations of welding fumes and particulate are produced, and where a portable fume extraction system is required to share between workspaces
