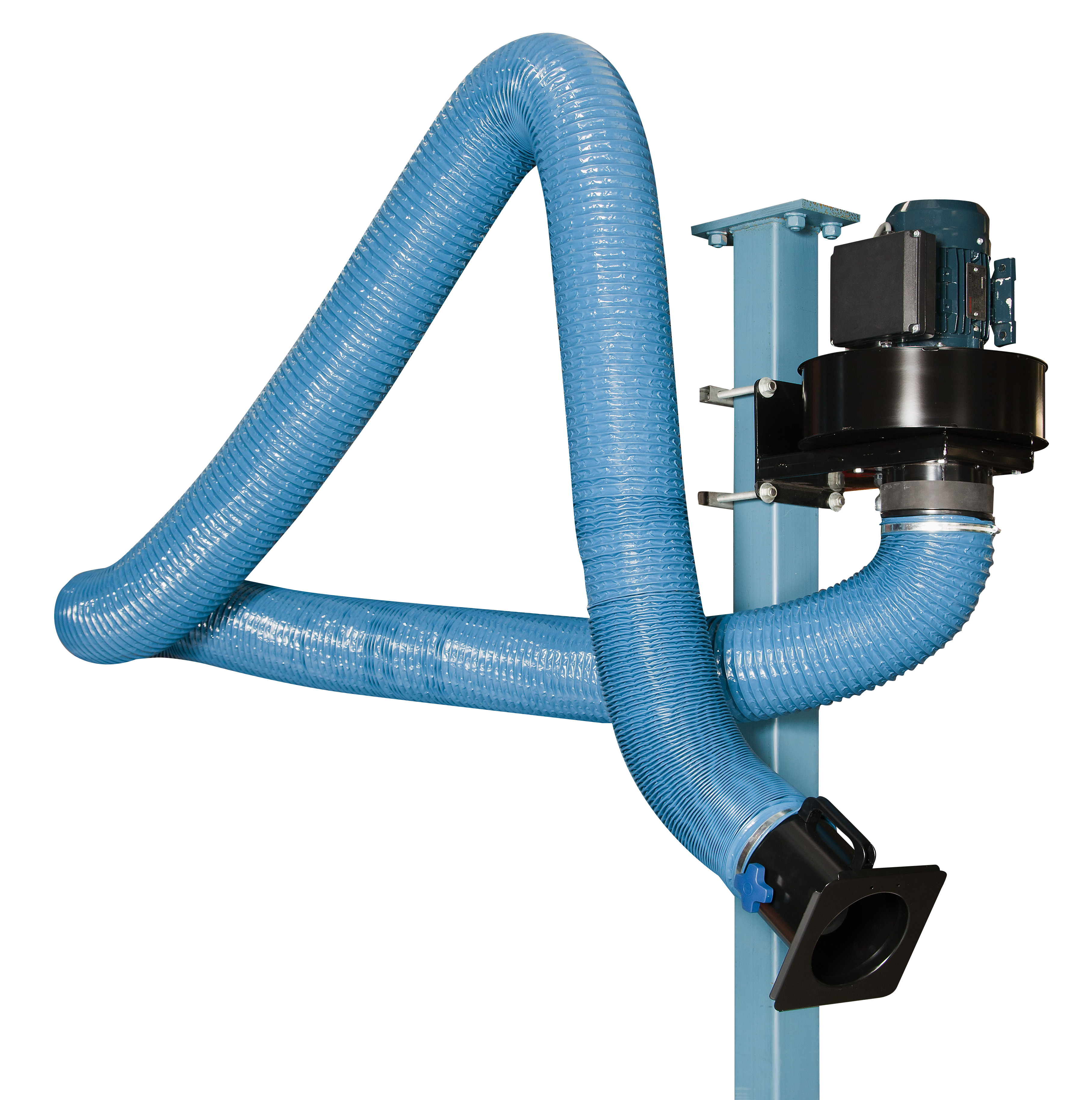

The Plymoth ALFI internally supported (IS) fume extraction arm (P-010) is an efficient and versatile benchwork extractor arm. It is designed to suit our pole and wall-mounted fans.
Internally supported hanging fume extraction arms are rigid during service and retractable for convenience. They provide a robust and flexible fume extraction solution.
Flexible arm - the inner parallelogram technology with unique spring-controlled lock makes the arm incredible easy to move and to retain its position for precise manoeuvrability
Durable - high temperature-resistant hose and steel hood can withstand sparks, chemicals and heat
Action radius - the extractor hood can be angled more than 110˚ in all directions
Spotlight - LED lighting options can be easily fitted onto the hood

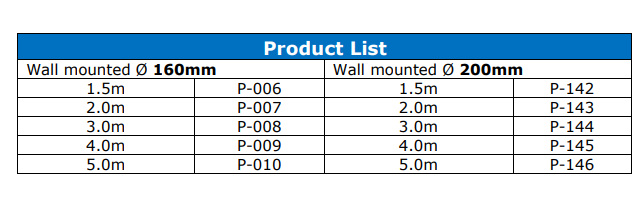

Flexible arm options - Various lengths available up to 5m long and 200mm diameter option also available
Hood with handle
Damper (for volume control)
Internal support mechanism
You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.
Spotlights - LED lighting for the hood

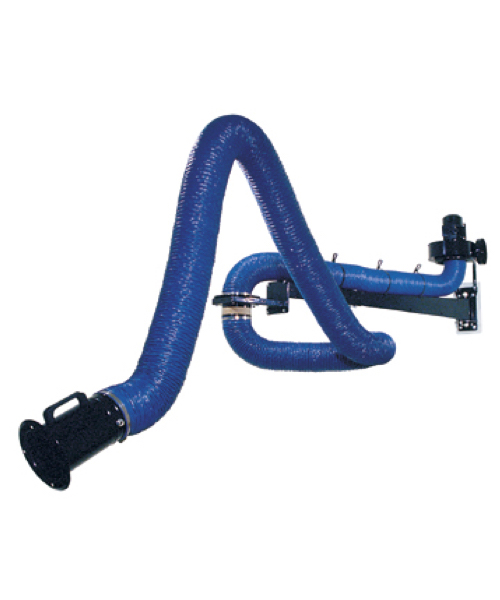

Extensions - up to 4m extension arms and extension ducting and ducting with magnetic hood
