Plymoth P-044 Fume Extraction Arm IS with extension - 9 metres

SKU: P-044

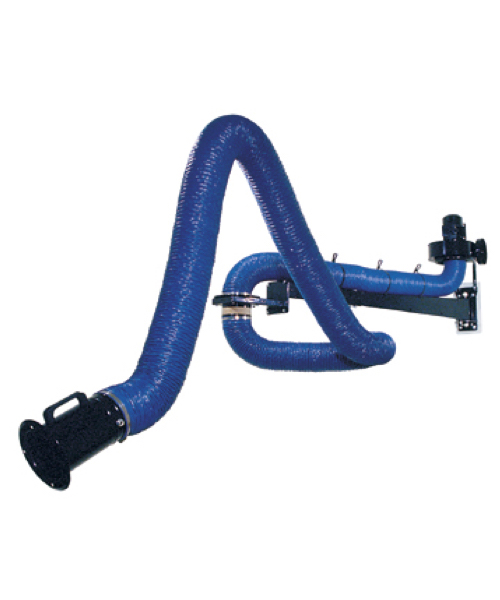

Plymoth Fume Extraction Arm with Extension Hose and Beam
With a reach up to 9 metres

Plymoth P-044 Fume Extraction Arm IS with extension - 9 metres

SKU: P-044
Self-supporting articulated internal support (IS) fume extraction arm with extension

Key features

Retractable, heavy duty, long distance reach

Manufacturer / Supplier

Plymoth

Plymoth's self-supporting fume extraction arms with extensions take care of fumes over large areas - specially developed for reaching over long distances when welding, mixing of chemicals, or grinding. The horizontal arm uses Plymoth's well-tested ball-bearing and disk-brake system to self-support, making it extremely flexible, incredibly easy to move, and able to carry 60kg. The unique spring-controlled lock holds the arm steady under operation.

It is designed to suit our pole or wall-mounted fans.

These arms are internally and externally supported to be rigid during service and retractable for convenience. They provide a lightweight, yet robust and flexible fume extraction solution for professional and heavy duty applications.

Flexible arm - the inner parallelogram technology with unique spring-controlled lock makes the arm incredible easy to move and to retain its position for precise manoeuvrability

Durable - high temperature-resistant hose and steel hood can withstand sparks, chemicals and heat

Action radius - the extractor hood can be angled more than 110˚ in all directions

Spotlight - LED lighting options can be easily fitted onto the hood

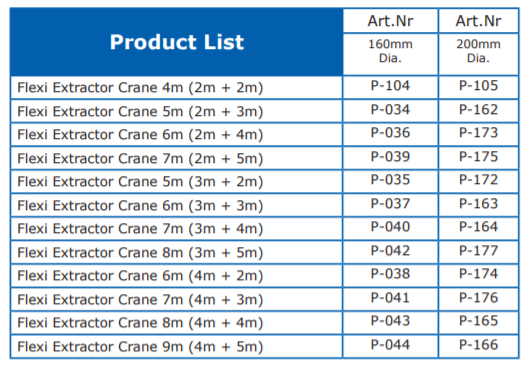

Flexible arm options - Various lengths available in 4m-9m with 160mm and 200mm diameter option also available


Typical environment

Welding, chemicals, grinding

Inclusions

Wall bracket

Hose

Hood with handle

Damper (for volume control)

Internal support mechanism

Accessories

Required

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Filter

Spotlights - LED lighting for the hood

Technical details

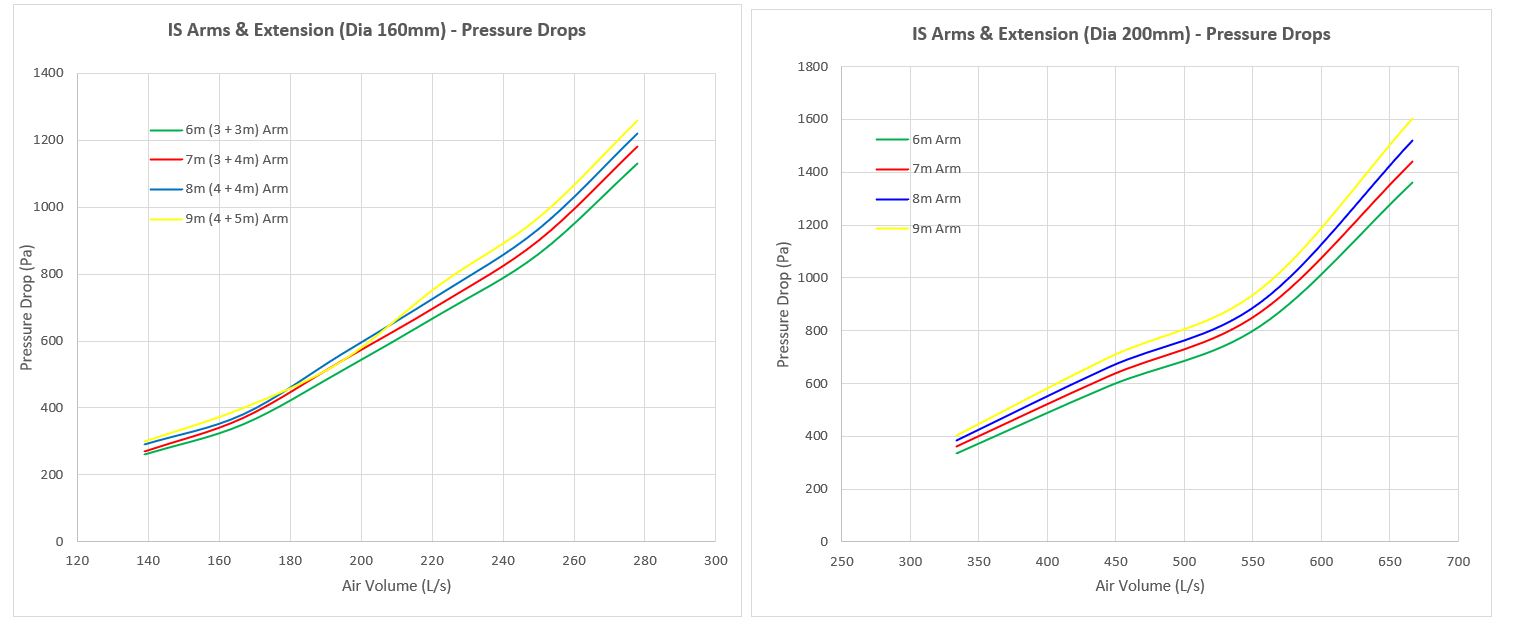

System Losses System Losses
Support Type Internal
Mount Type Wall
Diameter 160mm
Length 9m

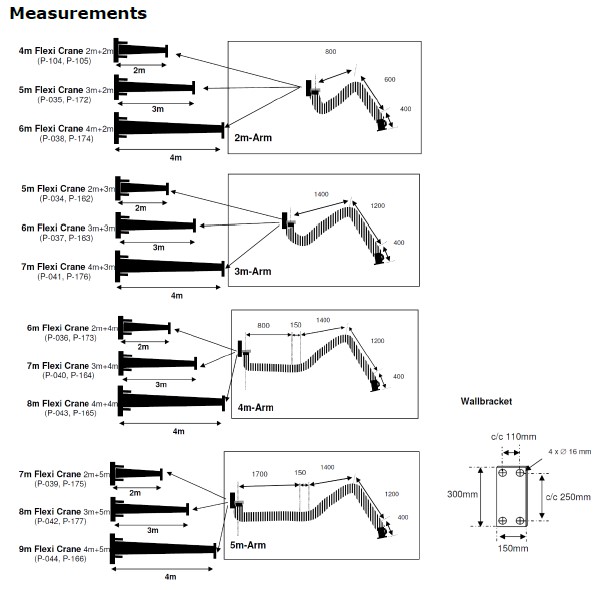

System Dimensions System Dimensions

Typical environment

Welding, chemicals, grinding

Manufacturer / Supplier

Plymoth

Packaging

Weight: 28kg
Height: 325mm
Width: 245mm
Depth: 1665mm
