Plymoth P-146 IS Fume Extraction Arm dia.200mm x 5m

SKU: P-146

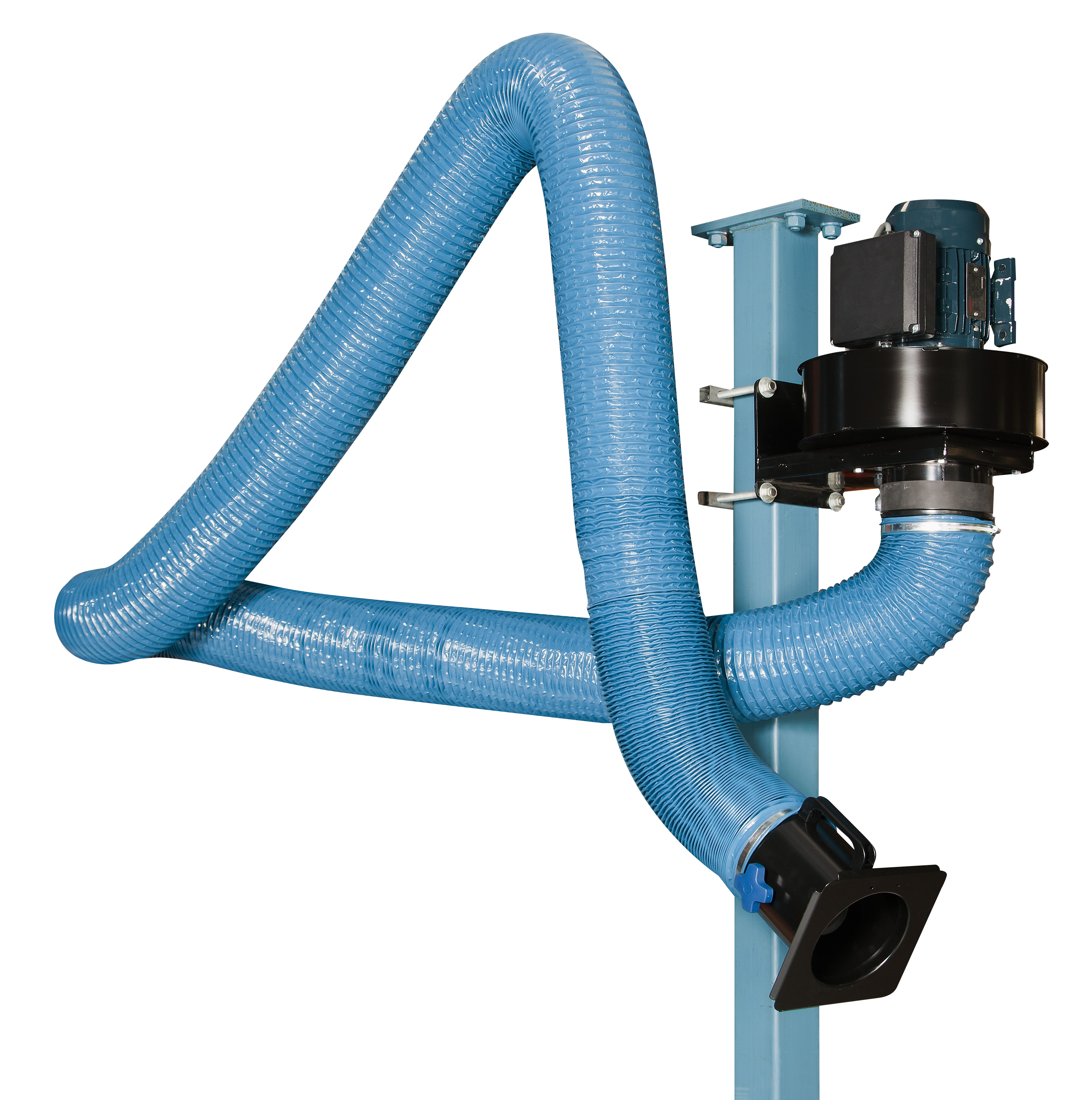

Product shot of a 4-5m Plymoth IS fume extraction arm, pole mounted with extraction fan
Pole mounted with an extraction fan

Plymoth P-146 IS Fume Extraction Arm dia.200mm x 5m

SKU: P-146
Self-supporting articulated hanging fume extraction arm for heavy smoke, dust and gases

Key features

200mm diameter for heavy smoke, dust and gases

Manufacturer / Supplier

Plymoth

The Plymoth ALFI internally supported (IS) fume extraction arm (P-146) is an efficient and versatile benchwork extractor arm. It is designed to suit our pole and wall-mounted fans.

Internally supported hanging fume extraction arms are rigid during service and retractable for convenience. They provide a robust and flexible fume extraction solution.

Flexible arm - the inner parallelogram technology with unique spring-controlled lock makes the arm incredible easy to move and to retain its position for precise manoeuvrability

Durable - high temperature-resistant hose and steel hood can withstand sparks, chemicals and heat

Action radius - the extractor hood can be angled more than 110˚ in all directions

Spotlight - LED lighting options can be easily fitted onto the hood

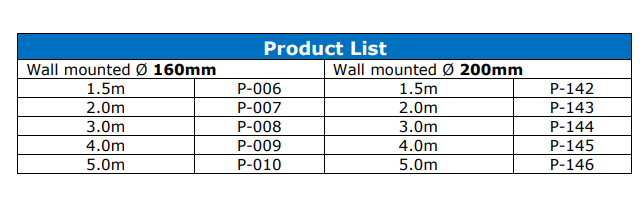

Flexible arm options - Various lengths available up to 5m long and 160mm diameter option also available


Typical environment

Welding and work cubicles, schools, workshops and car repair shops, areas with low ceilings

Inclusions

Wall bracket

Hose

Hood with handle

Damper (for volume control)

Internal support mechanism

Accessories

Technical details

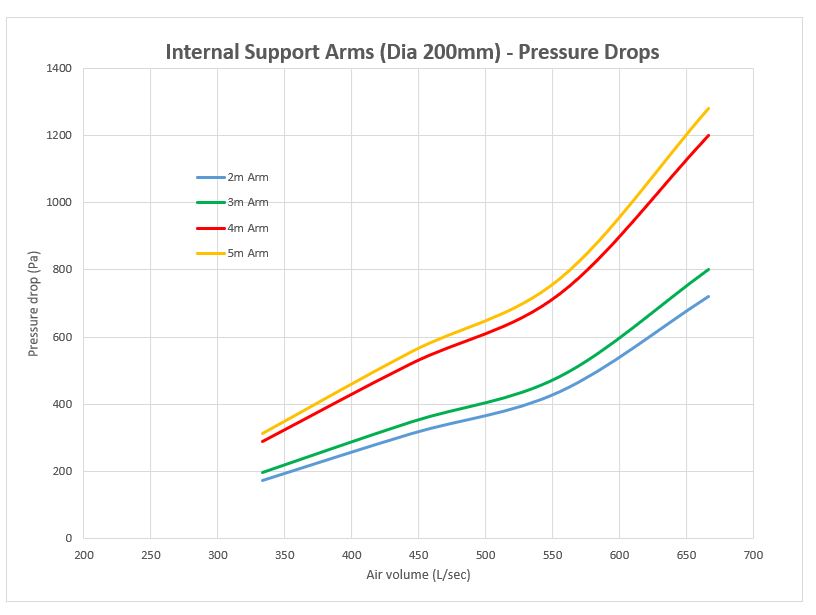

System Losses System Losses
Support Type Internal
Mount Type Wall
Diameter 200mm
Length 5m

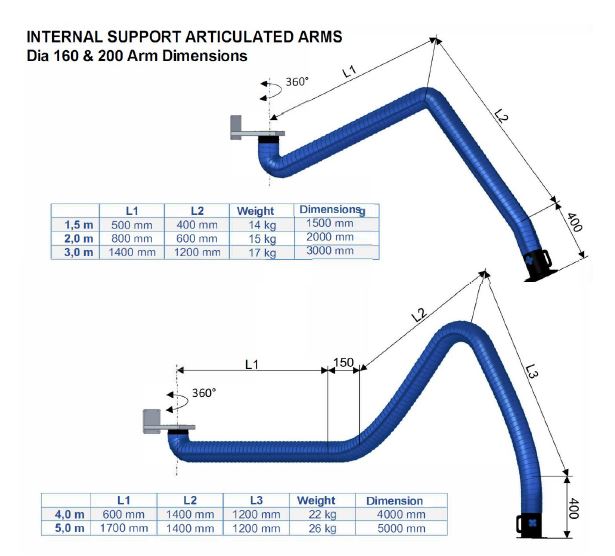

System Dimensions System Dimensions

Typical environment

Welding and work cubicles, schools, workshops and car repair shops, areas with low ceilings

Manufacturer / Supplier

Plymoth

Packaging

Weight: 17kg
Height: 325mm
Width: 860mm
Depth: 245mm
