Plymoth P-543 MF-Eco Mobile Filter (3 Phase)

SKU: P-543

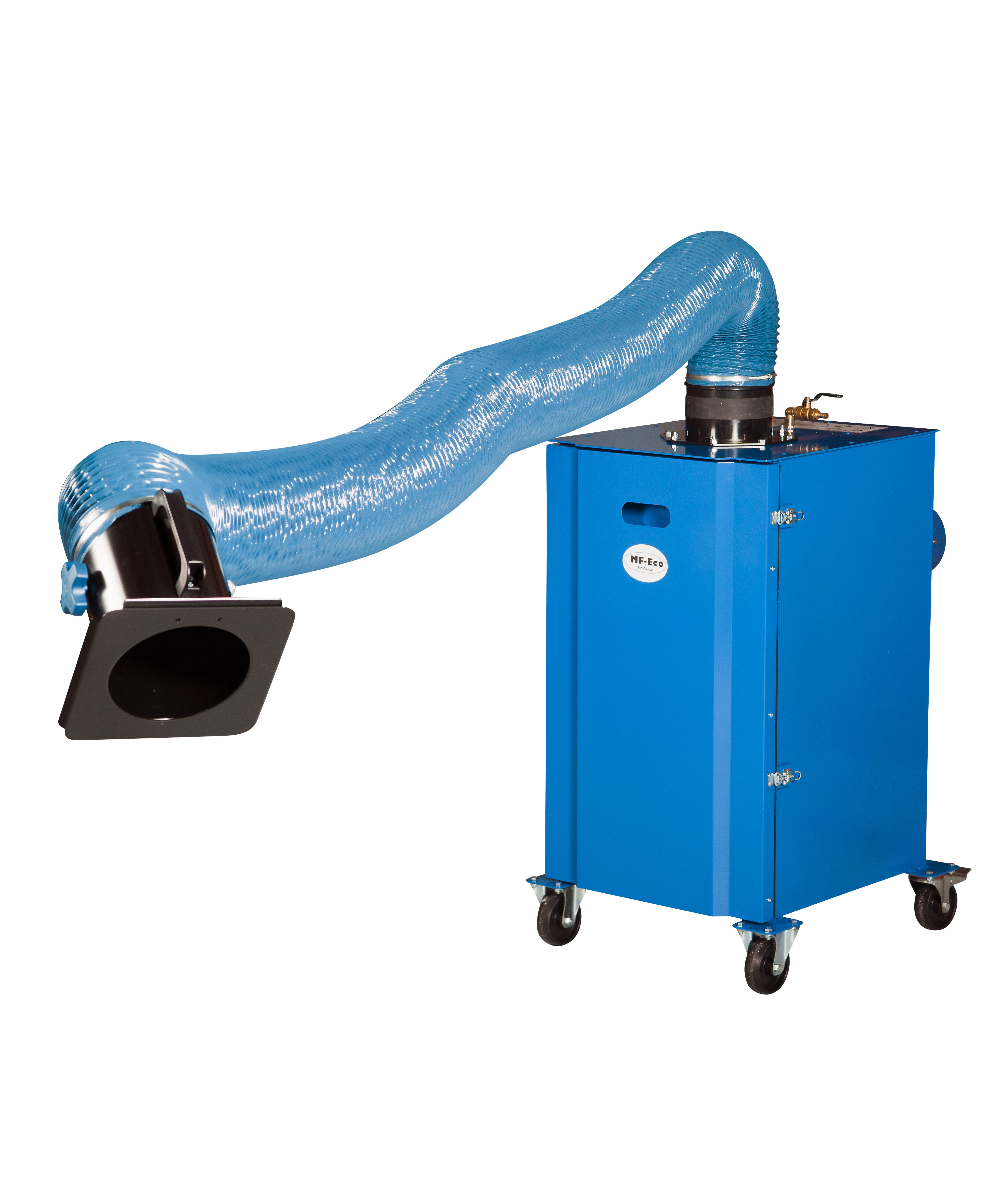

Product shot of the Plymoth MF-Eco Mobile Filter (mobile welding fume extractor) with a 2 meter Table-Mounted IS Fume Extraction Arm
Plymoth MF-Eco Mobile Filtered Units (p-540 and P-543)

Plymoth P-543 MF-Eco Mobile Filter (3 Phase)

SKU: P-543
A mobile filtered welding fume extractor (3 phase) with JetPulse self-cleaning system

Key features

Manoeuvrable with self-cleaning cleaning filter suitable for 3 phase power supply

THIS PRODUCT CAN HELP YOU MEET THE NEW (2024) AUSTRALIAN WELDING FUME EXPOSURE STANDARDS.

Manufacturer / Supplier

Plymoth

How to buy

Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.

The MF-Eco JetPulse Mobile Filter is the most economical mobile filtering solution available for local exhaust ventilation (LEV) of welding fumes and light dust. This unit is robust, mobile and efficient, and is ideal for applications where one unit can be shared between multiple workstations. It is the perfect solution for at-source extraction and where a 3-phase power supply is available.

Mechanical filtering - filter cartridge has a separation efficiency of over 99.9%.

Mobile - 4 smooth-running wheels (2 with brakes) and ergonomic handles making it easy to move between workstations

Self-cleaning JetPulse cleaner - built-in compressed air cleaning system (compressed air supply required)

Typical environment

Welding and woodwork workshops, schools, service and repair work

Inclusions

Filtered extraction unit and handles

Built-in compressed air filter cleaning arrangement and valve

New cartridge filter

Dust collection tray

4m electrical cable and 15 am Australian plug

Accessories

Required

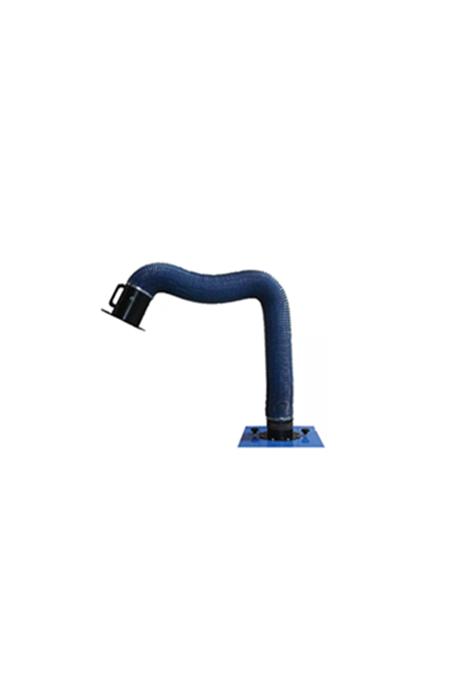

Flexi Table Filter Extractor Arm c/w 360˚ swivel mounting bracket (select required hose diameter and length)

  • P-002 (P-168) - Ø160mm / 2 metre
  • P-003 (P-169) – Ø160mm / 3 metre
Optional

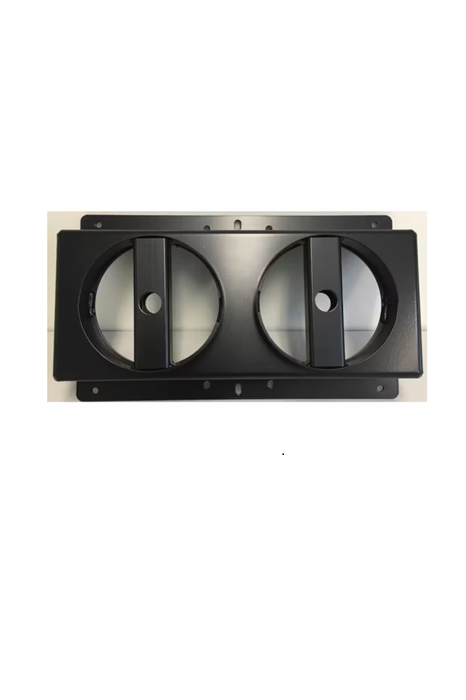

  • P-086 - Holder for 2 Flexi Arms Ø160mm (max 3m)
  • P-544 - HEPA Filter 23m2

Replacement parts

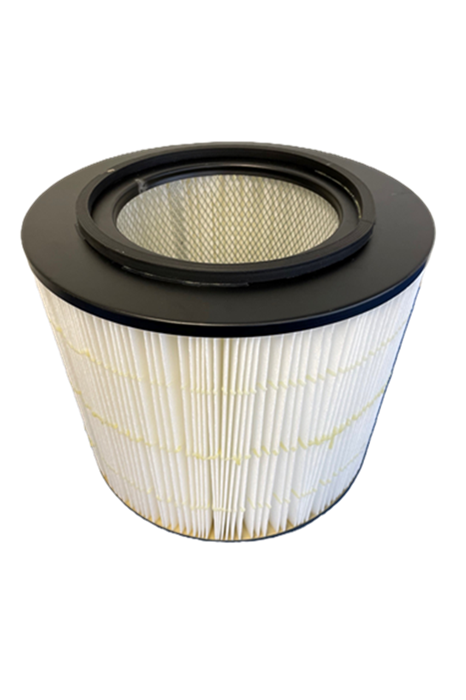

P-541 – Replacement Filter Cartridge

Technical details

Motor Power 0.75kW
Power Supply (V/Phase/Hz) 415/3/50
Extraction Flow Rate 1200m3/h
Arm Swivel 360°
Arm Radius 3m
Filter Efficiency 99%
Noise 70 dBa

Typical environment

Welding and woodwork workshops, schools, service and repair work

Manufacturer / Supplier

Plymoth

Packaging

Weight: 92kg
Height: 1115mm
Width: 610mm
Depth: 1200mm

Assembled

Weight: 80kg
Height: 980mm
Width: 520mm
Depth: 880mm

Downloads

Plymoth - MF-Eco and WF-Eco - Owners Manual
Plymoth - MF-Eco Mobile Filters - Technical Datasheet

Related products

Plymoth P-001 MF Mobile Filter (1 Phase)
Plymoth P-001 MF Mobile Filter (1 Phase)

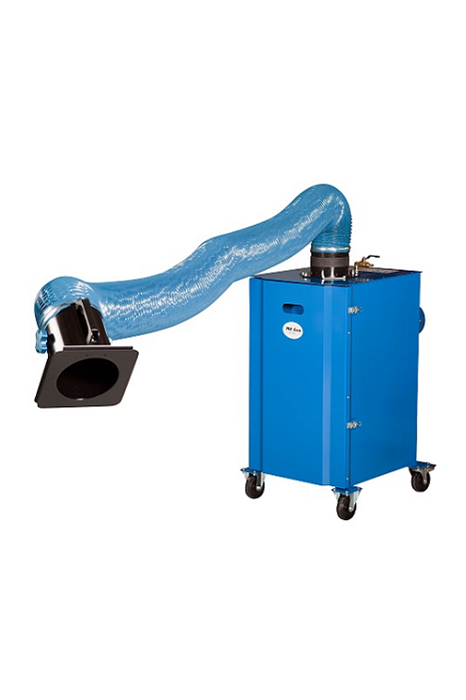

Plymoth P-540 MF-Eco Mobile Filter (1 Phase)
