Plymoth P-324 Mobile Fume Extraction Fan

SKU: P-324

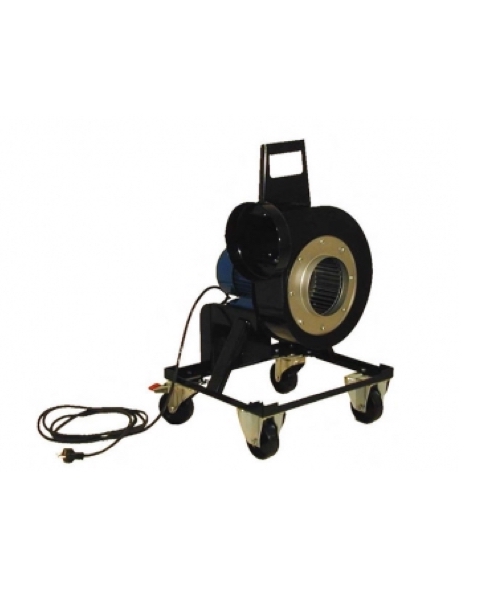

Product shot of the Plymoth Mobile Fan (P-324) on white background with wheels, handle and power cord
Mobile frame with sturdy castor wheels - ideal for shared work stations or temporary environments

Plymoth P-324 Mobile Fume Extraction Fan

SKU: P-324

Key features

Moveable

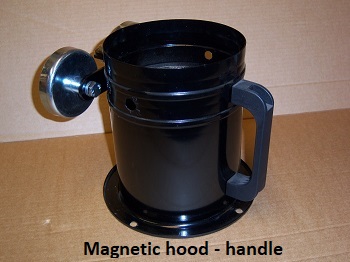

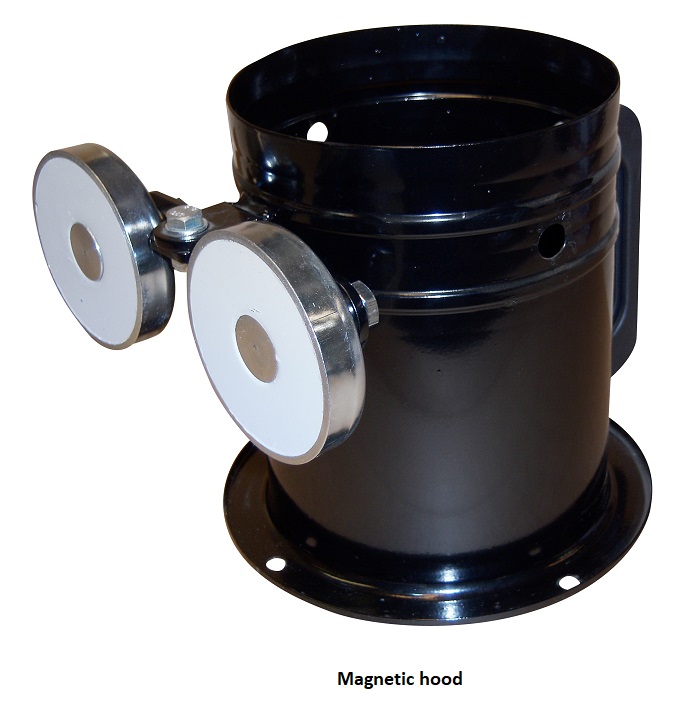

Use with heavy duty ducting (comes with magnetic hood for welding)

THIS PRODUCT CAN HELP YOU MEET THE NEW (2024) AUSTRALIAN WELDING FUME EXPOSURE STANDARDS.

Manufacturer / Supplier

Plymoth
Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.


A powerful fan on a mobile frame for extracting welding fumes, gases, lighter dust and other non-explosive pollutions at the source (local exhaust ventilation). Combined with heavy duty and high temperature ducting, and a metal hood and robust magnetics (for easy positioning of the hood), this mobile set-up is ideal for service, repair or other temporary work. Simply connect to a mobile fan inlet and extract at-source fume and dust. Extracting fumes at the source means cleaner air at work which is safer for all staff.

Flexible - can be equipped with different inlet and outlet hoses eg hose with magnet hood for welding

Supply fresh air - inlet and outlet hoses provide an efficient and far-reaching source of fresh air for difficult working environments

Options - Hazardous and explosive fumes extraction also available - ask our sales team for more information.


Typical environment

At-source extraction of smoke, gases and dust when working in servicing or temporary work environments.

Inclusions

Fan with 1-Phase motor

4 big wheels and handle

Inlet spigot, inlet Ø160 mm, outlet Ø200 mm

Circuit breaker with motor cut-out and isolator

4m cable with 15 amp Australian plug

Accessories

Required

Extension ducting:

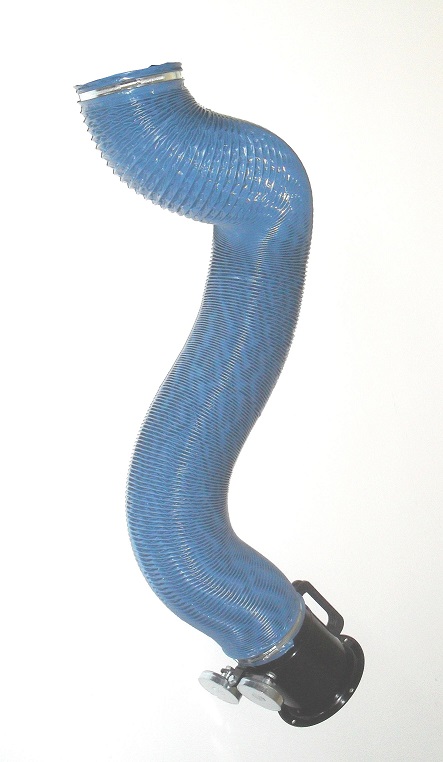

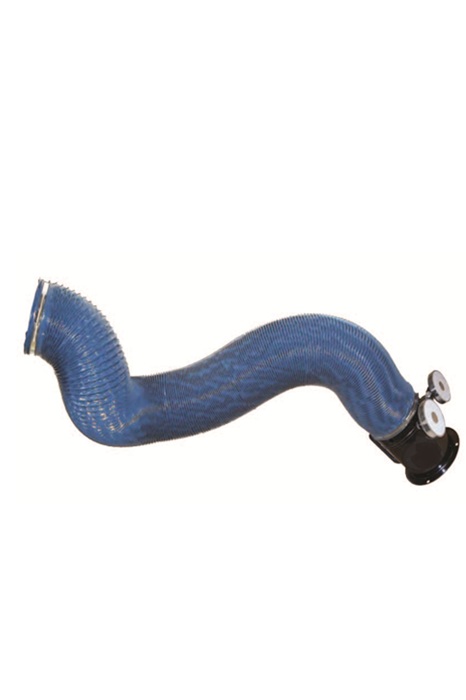

  • P-018 - Ø160mm x 3m with magnetic hood
Optional

Extra or longer extension ducting also available:

  • P-397 - Ø160mm x 3m, with transition hood and clamps
  • P-398 - Ø160mm x 6m, with transition hood and clamps

Technical details

Motor Power 0.75kW
Motor Full Load (FLA) 5.15 Amps
Motor RPM 2880
Power Supply (V/Phase/Hz) 240/1/50
Extractor Flow Rate 2100m3/h
Free Inlet and Outlet No
Noise 65 dBa

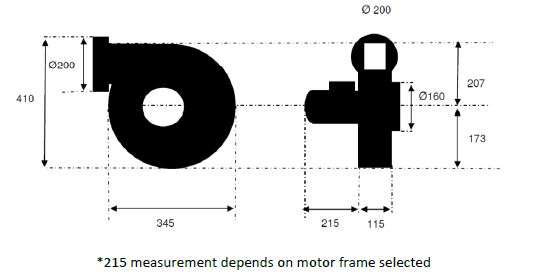

Dimensions Fan dimensions

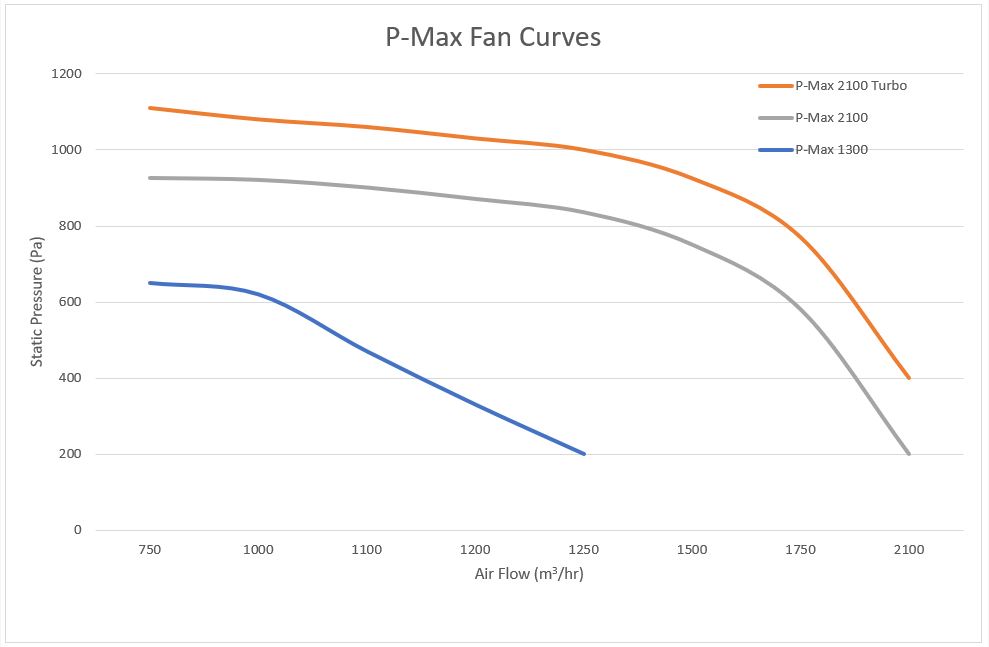

Performance Curves Fan Performance Curves

Typical environment

At-source extraction of smoke, gases and dust when working in servicing or temporary work environments.

Manufacturer / Supplier

Plymoth

Packaging

Weight: 29kg
Length: 880mm
Width: 1000mm
Height: 720mm
