Plymoth P-032 P-Max Fan Turbo

SKU: P-032

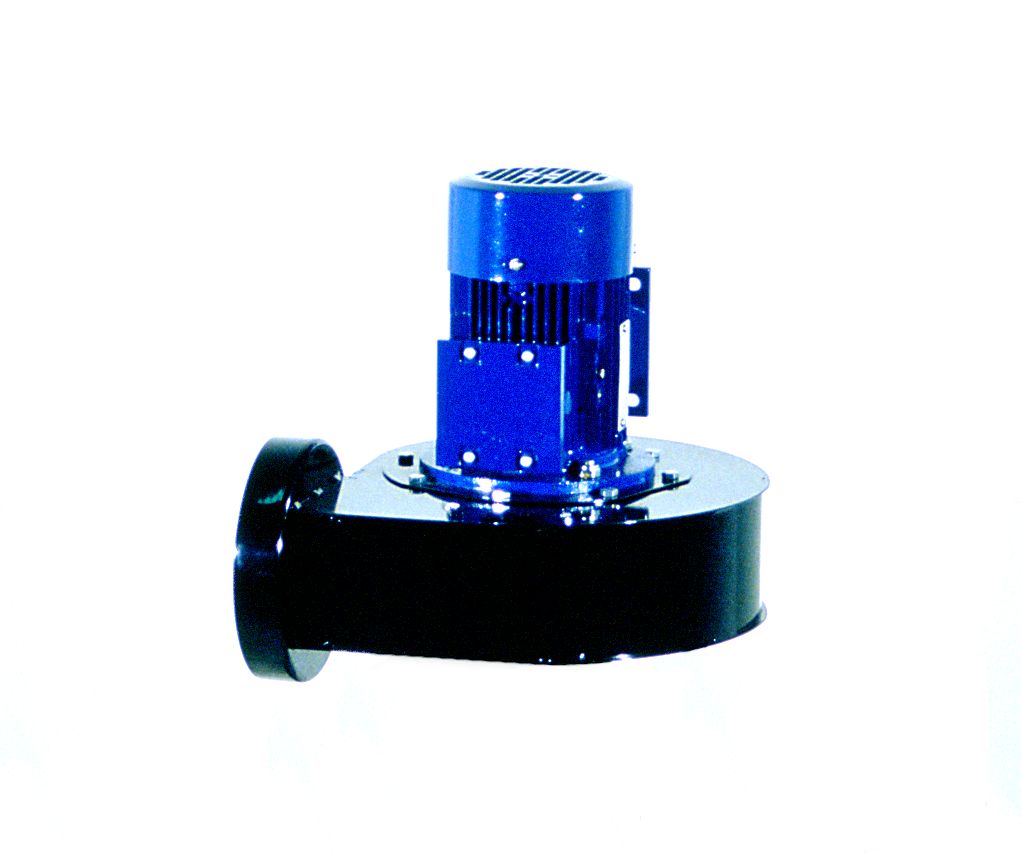

Product shot of the Plymoth P-Max fan on a white background

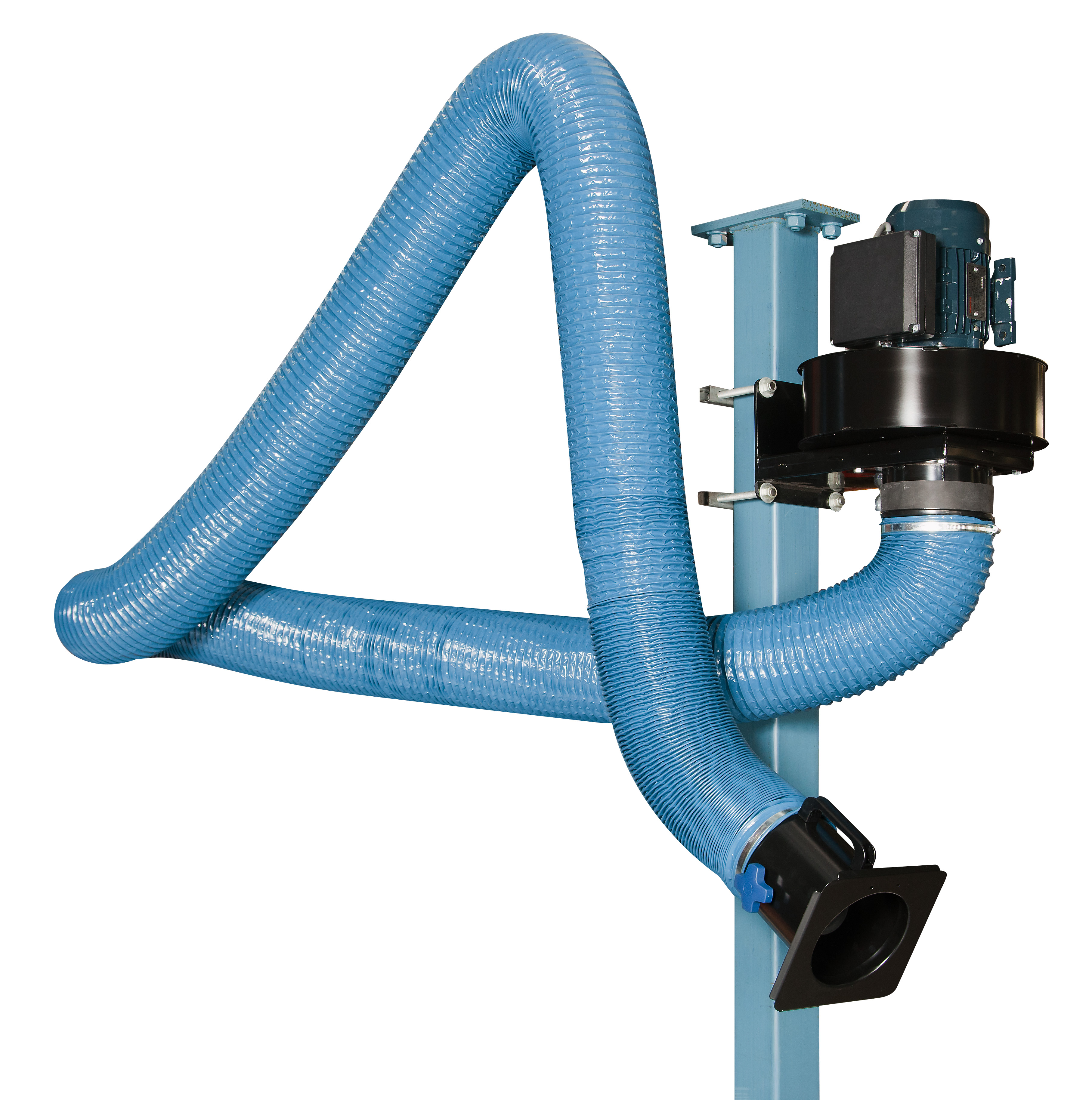

Designed to fit directly onto the wall bracket of Plymoth fume extraction arms, or comes with a mounting bracket

Plymoth P-032 P-Max Fan Turbo

SKU: P-032
Turbo fan (1.1kW, 3 Phase) for use with fume extraction arms

Key features

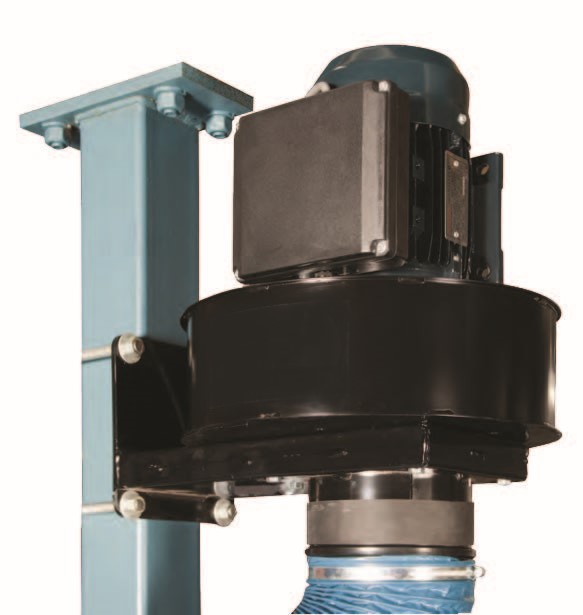

Wall or pole mounted. Turbo fan, 1.1kw, 3 Phase, FIO

THIS PRODUCT CAN HELP YOU MEET THE NEW (2024) AUSTRALIAN WELDING FUME EXPOSURE STANDARDS.

Manufacturer / Supplier

Plymoth

How to buy

Dynamic Engineering Australia - The Ventalation System Experts
We don't just sell products.
We engineer solutions using quality products
to best suit your application.

We are the Ventilation System Experts.

The P-Max fan is designed for extracting smoke, gas and lighter dust, and is ideal for the safe removal of welding fumes (local exhaust ventilation). It is designed to fit directly onto the wall bracket of the Plymoth extraction arms, or together with a mounting bracket.

Other fan sizes to suit the Plymoth retractable extraction arms:

  •  P-Max fan P-011 - 0.37kW | 1 Phase or 3 Phase | 1300m³/hr FIO
  • P-Max fan P-012 - 0.75kW | 1 Phase or 3 Phase | 2100m³/hr FIO
  •  P-Max turbo fan P-013 - 0.75kW | 3 Phase | 2100m³/hr (do not run FIO)
  •  P-Max turbo fan P-015 - 0.75kW | 1 Phase | 2100m³/hr (do not run FIO)
  • Mobile option - also available on a mobile frame with wheels, handle, inlet spigot, circuit breaker and isolator, 4m cable with plug (see Mobile fan P-324)

 Hazardous and explosive fumes extraction - options also available - ask our sales team for more information.

Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Inclusions

P-Max fan, fan case and motor

Outlet is round with a diameter of 200 mm

Plug and lead not included

Accessories

Required

Flexible extractor arms can be ordered separately to suit the size required (160mm or 200mm diameter; length 1.5 - 9 metres)

Technical details

Motor Power 1.1kW
Motor Full Load (FLA) 2.7 Amps
Motor RPM 2825
Power Supply (V/Phase/Hz) 415/3/50
Extractor Flow Rate 2100m3/h
Free Inlet and Outlet Yes
Noise 67 dBa

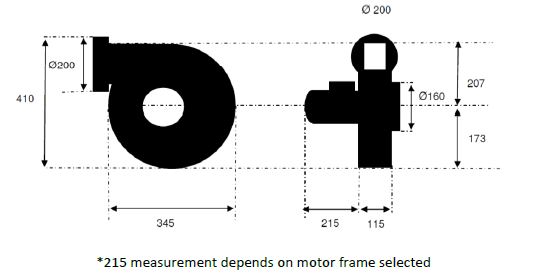

Dimensions Fan dimensions

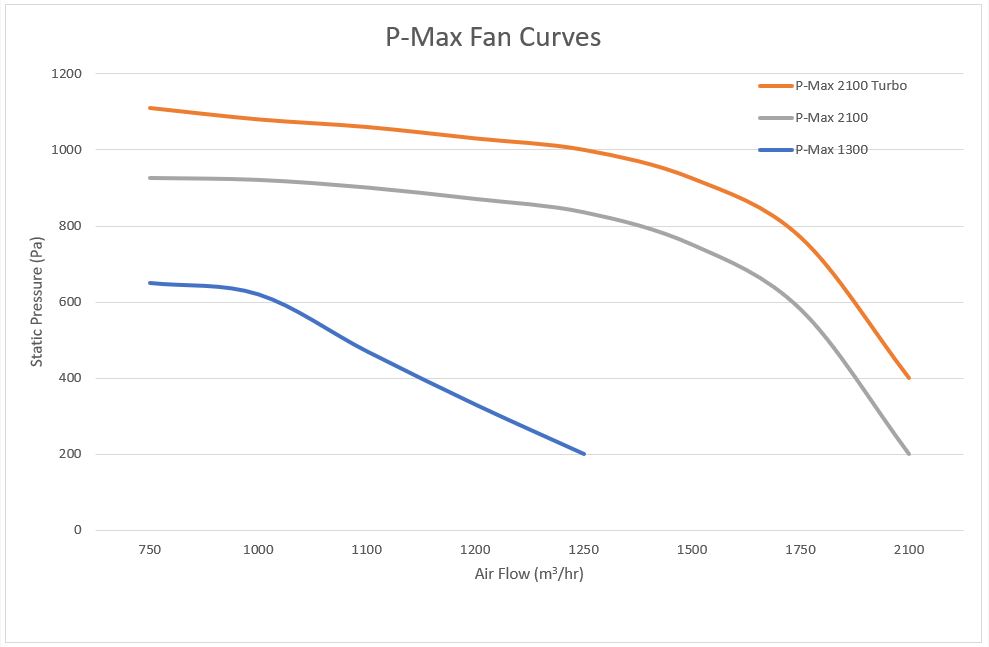

Performance Curves Fan Performance Curves

Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Manufacturer / Supplier

Plymoth

Packaging

Weight: 18kg
Height: 475mm
Width: 430mm
Depth: 420mm

Downloads

Plymoth - P-Max Fans - Owner Manual
Plymoth - P-Max Fans - Technical Datasheet

Related products

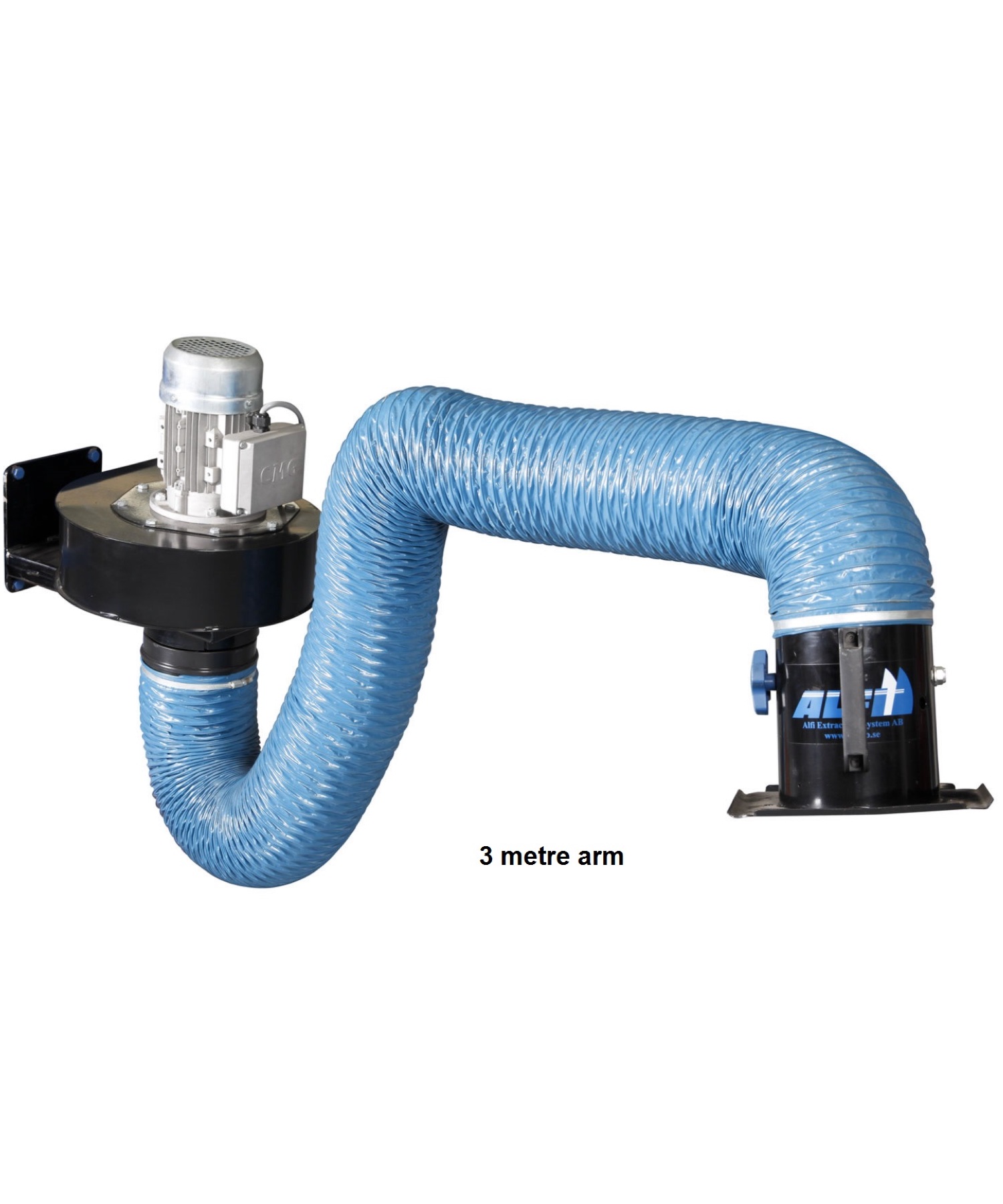

Plymoth P-008 IS Fume Extraction Arm Ø160mm x 3m
Plymoth P-008 IS Fume Extraction Arm Ø160mm x 3m

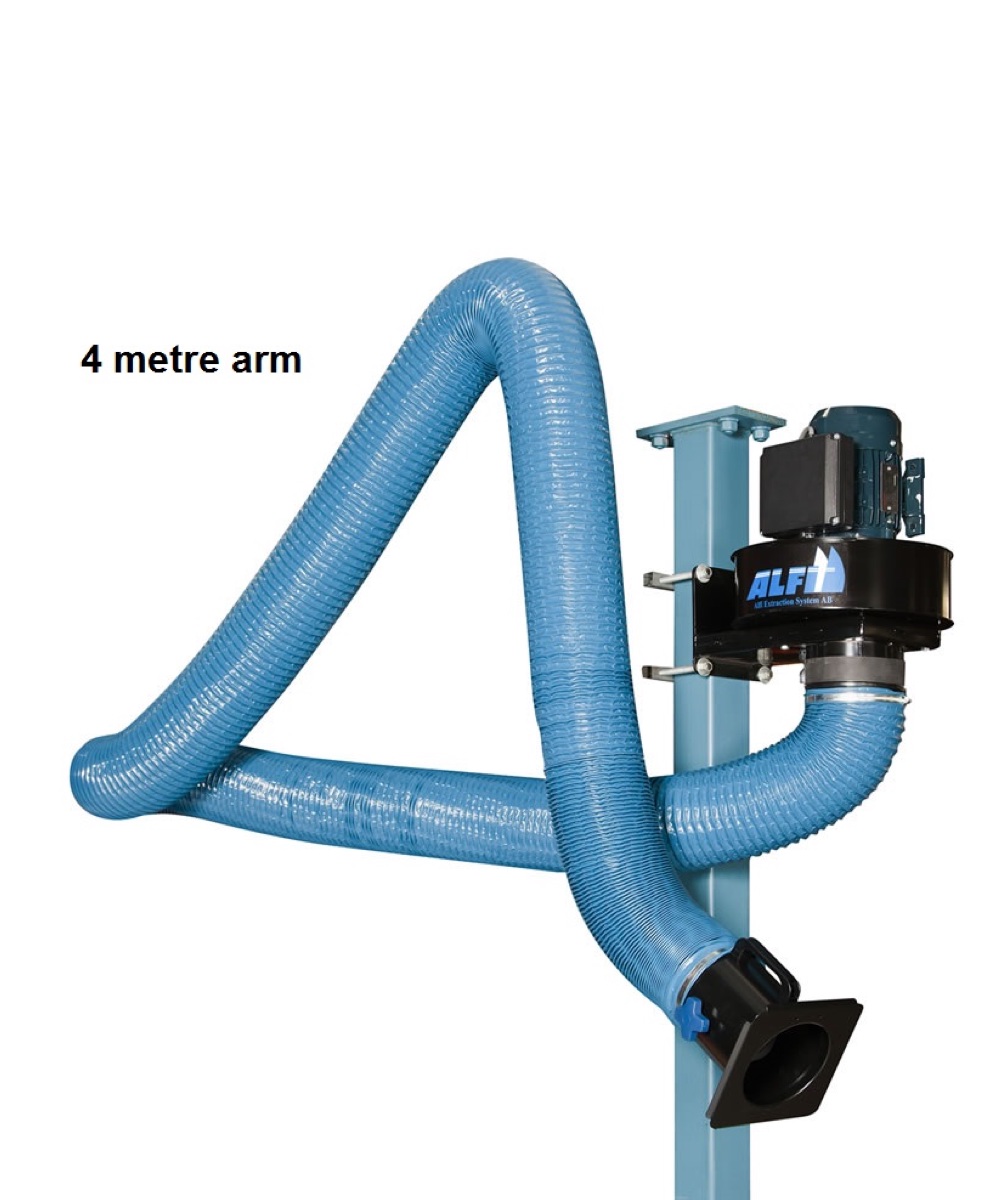

Plymoth P-009 IS Fume Extraction Arm Ø160mm x 4m
