Plymoth P-717 Super-M Fume Extraction Arm (Stainless Steel)

SKU: P-717

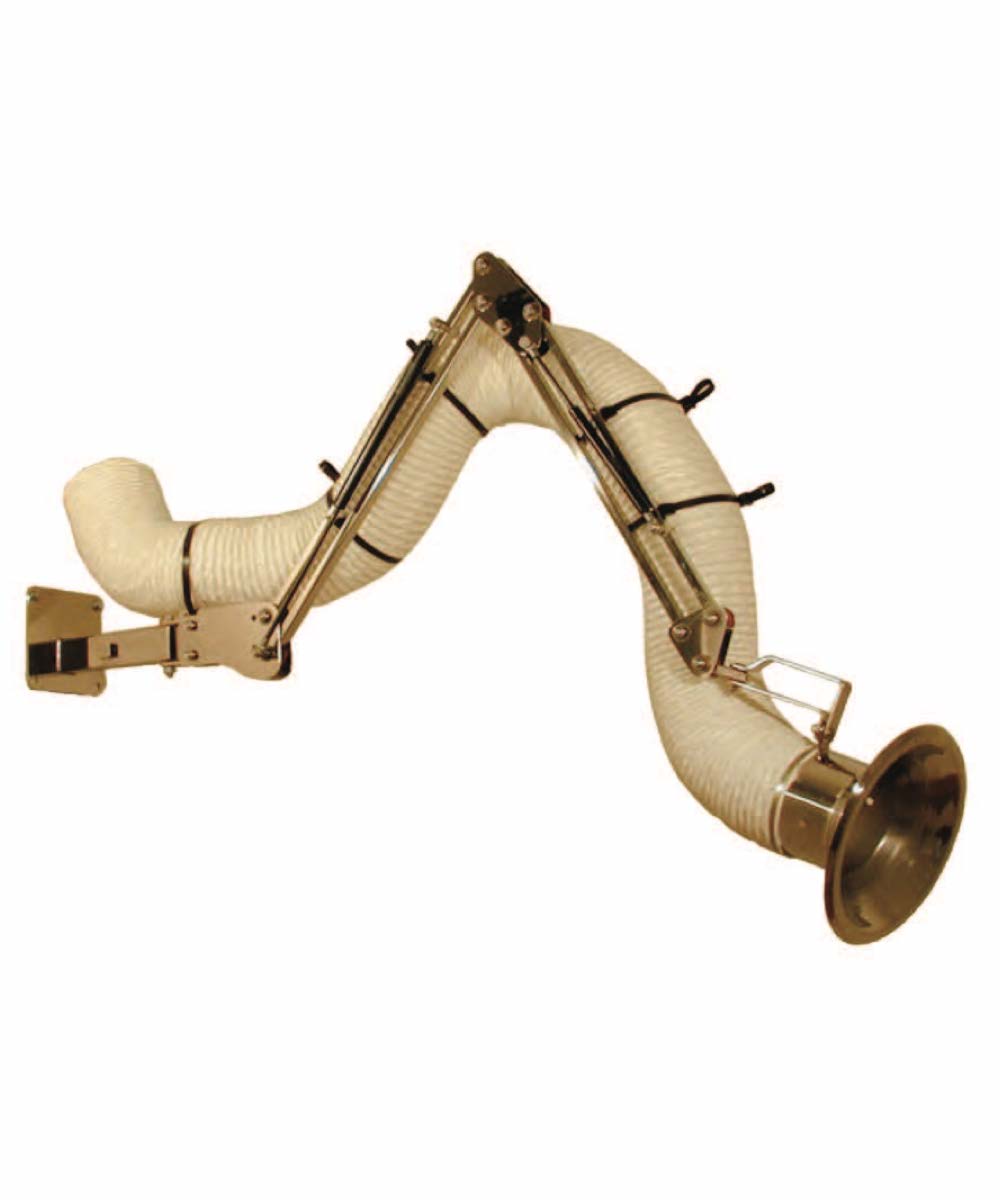

Product shot of the Plymth Super-M fume extraction arm with external support and hood
External support (self-supporting) arm with hood

Plymoth P-717 Super-M Fume Extraction Arm (Stainless Steel)

SKU: P-717
Self-supporting articulated ES fume extraction arm for the toughest working environments in pharmaceutical, food processing, and chemical industries

Key features

Made of acid-proof and mirror polish stainless steel

Manufacturer / Supplier

Plymoth

The Super-M fume extraction arm extracts smoke, dust and gases directly at source, before the contamination has spread in the premises and inhaled, for effective local exhaust ventilation. It creates a better work environment, less wear and tear of machinery, and lower cleaning costs.

The Super-M fume extraction arm is made for the toughest work environments. Every detail is made of acid-proof, mirror-polished stainless steel - wall bracket, parallelogram arms, handle, hood, damper, bolts, nuts, washers – all of it! The external hydraulically suspended parallelogram arms are perfectly balanced to make the hood incredibly easy to move and 100% stable in all positions.

Sterilised - can be sterilised in an Autoclave

Mirror polished - all surfaces are mirror polished (not electrolytic polishing) for easy disinfection with chemicals

Sealed - all tube ends are sealed for maximum hygiene

Earthed - the arm is earthed the whole way from the hood to the wall. NB: with an anti-static-earthed hose (not standard), the arm is approved for explosive environments.


Typical environment

Pharmaceutical, food process, technical chemical industries

Inclusions

Wall bracket

PVC hose

Hood

Accessories

Required

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Damper

Filter

Technical details

Support Type External
Diameter 160mm
Length 1.5 (0.25m + 1.5m)m

Typical environment

Pharmaceutical, food process, technical chemical industries

Manufacturer / Supplier

Plymoth

Packaging

Weight: 23kg
Height: 3000mm
Width: 1355mm
Depth: 3800mm
