Plymoth P-349 Super-P Fume Extraction Arm (Powder Coated Mild Steel)

SKU: P-349

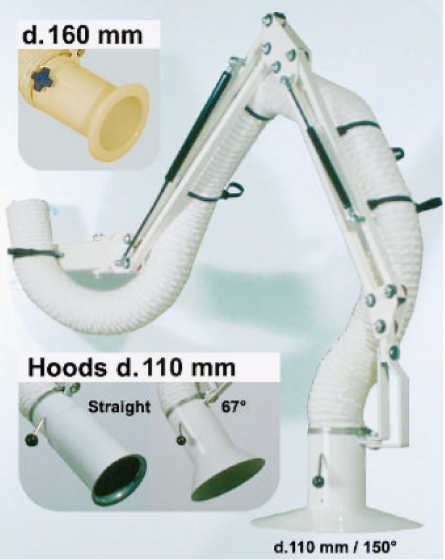

Chart showing the 4 types of Plymoth Super P fume extraction arm hoods - dia 160mm, dia 110mm - straight 67 degrees, 150 degrees
Hood types for different diameters and depending on extraction type

Plymoth P-349 Super-P Fume Extraction Arm (Powder Coated Mild Steel)

SKU: P-349
Self-supporting articulated ES fume extraction arm powder-coated for corrosive environments

Key features

Sealed tube ends  for maximum hygiene

Manufacturer / Supplier

Plymoth

The Super-P fume extraction arm extracts smoke, dust and gases directly at source, before the contamination has spread in the premises and inhaled, for effective local exhaust ventilation. It creates a better work environment, less wear and tear of machinery, and lower cleaning costs.

The Super-P fume extraction arm is made for usage when controlling, measuring, weighing, filling, blending, mixing, emptying and packaging. The external hydraulically suspended parallelogram arms are perfectly balanced to make the hood incredibly easy to move and 100% stable in all positions.

dia.110 mm hose and hoods - designed specifically for the chemical industry. Straight hood is for dust, 67o hood is for smoke, and the 150o hood is for gases (cyclone effect which enhances capacity to extract gases)

dia.160 mm hose and hood - intended for applications where 800-1200 m3/h through the extractor is needed


Typical environment

Pharmaceutical, food process, technical chemical industries

Inclusions

Wall bracket

PVC hose

Hood

Accessories

Required

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Damper

Filter

Technical details

Support Type External
Diameter 110mm
Length 1.5 (0.25m + 1.5m)m

Typical environment

Pharmaceutical, food process, technical chemical industries

Manufacturer / Supplier

Plymoth

Packaging

Weight: 23kg
Height: 3800mm
Width: 1355mm
Depth: 3000mm
