Plymoth P-133 V-Max Central Fan

SKU: P-133

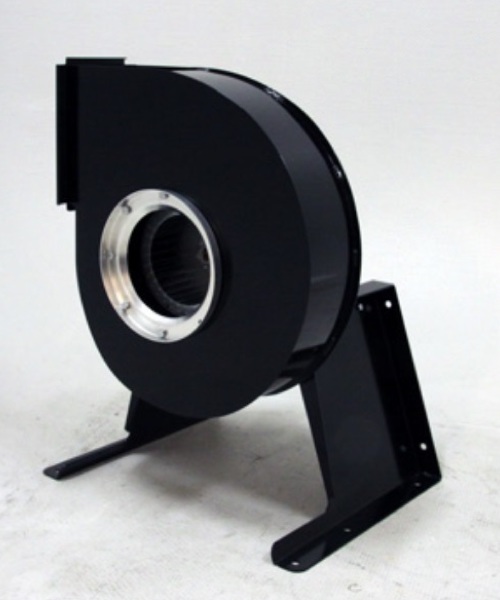

A product shot of the Plymoth V-Max centrifugal fan, inlet facing
Front view with inlet

Plymoth P-133 V-Max Central Fan

SKU: P-133
Large central centrifugal fan for use with fume extraction arms

Key features

Central centrifugal fan designed specially for smoke, gas and lighter dust

Manufacturer / Supplier

Plymoth

The Plymoth V-Max central fans are designed specially for smoke, gas and lighter dust (local exhaust ventilation). They are made of heavy steel plate and come complete with a pedestal for mounting on floors, walls or ceiling. They are larger fans suitable for multiple arms ducted together or to a one-off hood or pick-up point. Ideal for welding fume extraction. Extracting fumes at the source means cleaner air at work which is safer for staff.

These other large central fan sizes suit multiple Plymoth retractable extraction arms:

  • V-Max central fan P-131 - 0.37kW/3 Phase/1300m³
  • V-Max central fan P-132 - 0.75kW/3 Phase/2100m³
  • V-Max central fan P-134 - 2.2W/3 Phase/4600m³

Energy savings for welding operations - An extraction system with a central fan unit can be equipped with an Automatic Damper S-Max© to save energy when welding. One damper per extractor is needed. The damper automatically starts working when the welding starts and operates only during the arc time. The amount of extracted hot air can be reduced up to 90 percent. A substantial saving!


Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Inclusions

V-Max central fan

Pedestal for floor/wall/ceiling mounting

Fan case

Inlet d.250mm, outlet 145x220mm

Plug and lead not included

Accessories

Required

Flexible extractor arms can be ordered separately to suit the size required (160mm or 200mm diameter; length 1.5 - 9 metres)

Technical details

Power Supply (V/Phase/Hz) 415/3/50 | 240/1/50

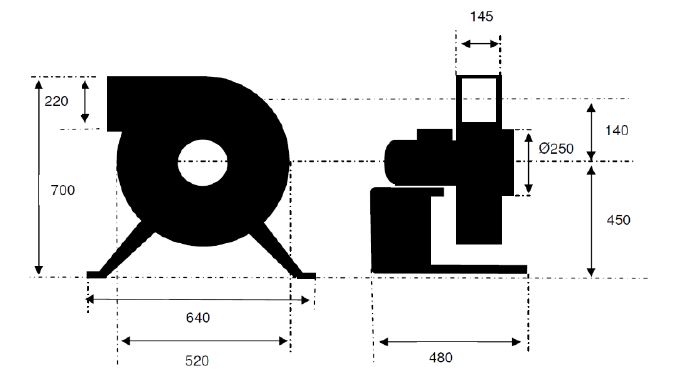

Dimensions Fan dimensions

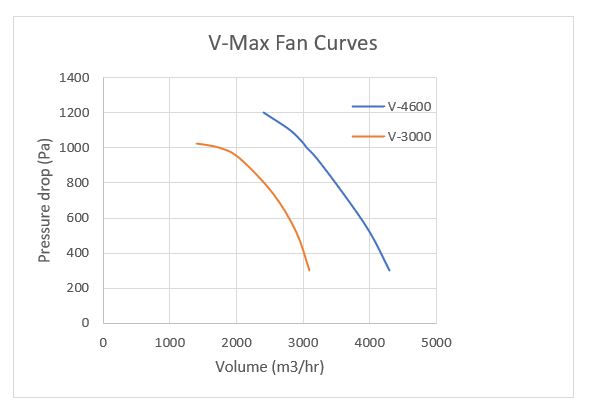

Performance Curves Fan Performance Curves

Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Manufacturer / Supplier

Plymoth

Packaging

Weight: 21kg
Height: 575mm
Width: 580mm
Depth: 500mm
