We engineer solutions using quality products to best suit your application.
We are the Ventilation System Experts.

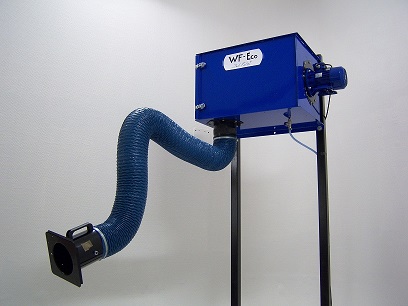

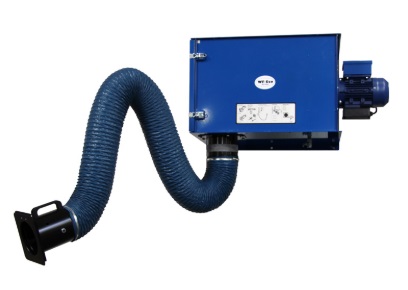

The most efficient and economical local exhaust ventilation (LEV) solution for welding smoke and dust extraction, the WF-Eco fume extractor collects welding fumes and fine grinding dust at source. With up to 99.9 percent effectiveness, work areas are cleaned of welding fumes or fine grinding dust, and the purified air is returned to the room without any loss of heat.
Three phase unit also available (P-547).
Strong - is robustly built and comes standard with a sturdy wall mounting system.
Flexible - designed so the hanging, self-supporting articulated Fume Extraction Arms are screwed directly to the underside of the filter housing. There are no additional holes to be drilled in the wall.
Jet Pulse cleaning - has a very efficient built-in compressed air self-cleaning system that cleans the filter cartridge within minutes... just open the door to empty the dust tray and then it's ready to use again!
Easy to mount - mount on the wall, attach electricity and compressed air, mount hanging self-supporting articulated Fume Extraction Arm (sold separately) and it's ready to use.
Economical - lower cost than a central filtered system and confidence you are extracting at least 1000m³/h.
Typical environment
Welding and grinding
Inclusions
WF-Eco filtered unit
Jet Pulse filter cartridge
4m cable with plug
Accessories
Required
Hanging Flexi Extraction Arm (select required hose length)
P-052 - Ø160mm / 2 metre
P-053 – Ø160mm / 3 metre
Optional
P-554 - HEPA filter 23m2
P-553 - HEPA filter plenum (needed for mounting HEPA filter on top of unit)
