AerService LAB Arm

SKU: LAB-51

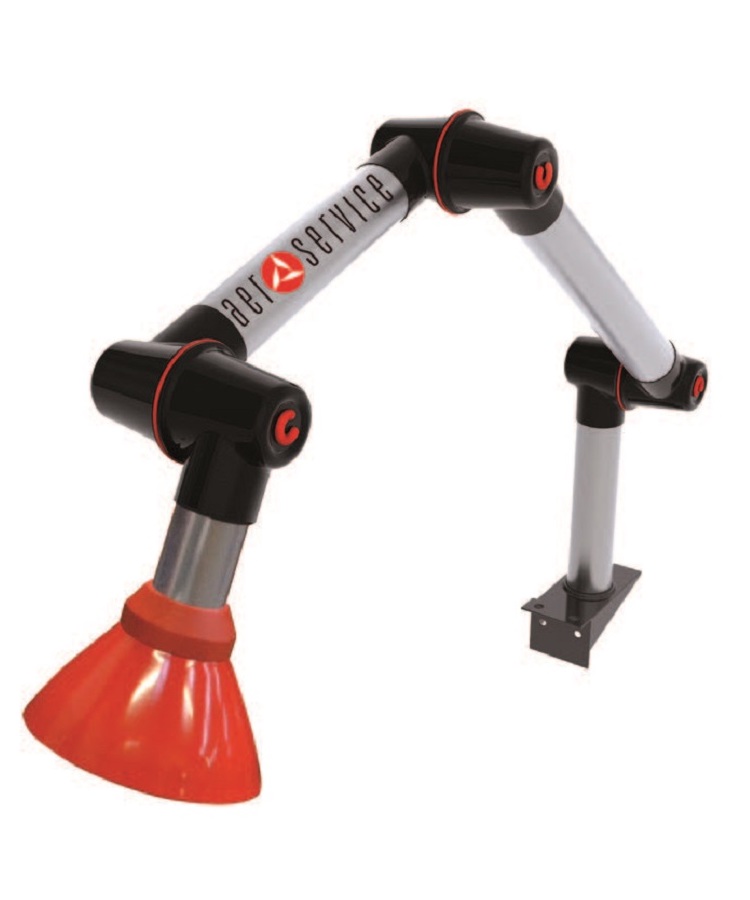

Product shot of AerService's LAB Arm
Product shot of AerService's LAB Arm

AerService LAB Arm

SKU: LAB-51
A small self-supporting articulated aluminium arm for bench or wall installation in laboratories and salons

Price starts at

Key features

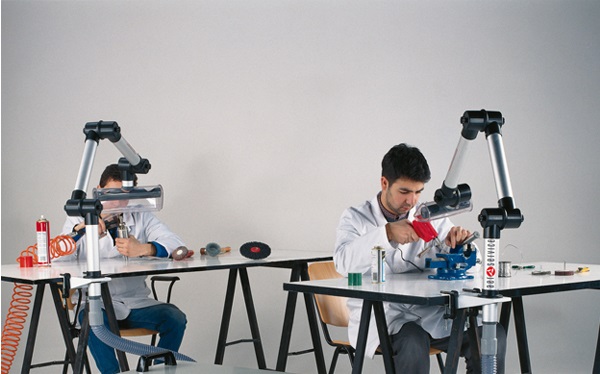

Light, manoeuvrable arm for laboratories, workshops and soldering stations

Manufacturer / Supplier

AerService Equipment

The ideal fume solution in a laboratory is to capture fumes, gases, and micro dust as close as possible to the operator, protecting from the pollutants emitted during soldering of metals and alloys (local exhaust ventilation - LEV). It is essential for operators to have fluid movement in all possible directions to maintain the desired position for the suction (at-source fume extraction).

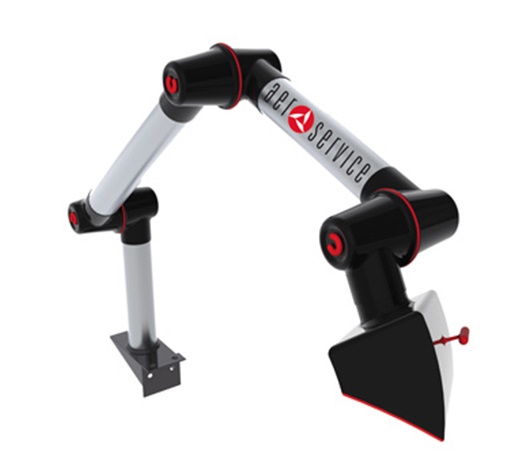

Made of light aluminium alloy, this articulated arm is characterized by exceptional manoeuvrability and versatility, thanks to its light and functional structure. It can be completed with different types of nozzles depending on the application.

Lightweight - Self-supporting system in light aluminium alloy, which combines lightness and resistance to pollutants.

Clean and smooth surface - The totally smooth contact surfaces prevent the accumulation of micro-particles.

Versatile - interchangeability of the suction hood according to the specific application, and suitable for centralized applications or for single extraction station. Also has 2-joint versions for environments with height restrictions, and fixed versions for laboratories.

Easy to set up - articulated ABS structure with external adjustment. Brackets in painted steel for fitting to the wall or on the worktop, with couplings designed for flexible hoses.

Please note: This kind of extraction arm has been designed exclusively for the extraction of fumes or micro-particles generated by non-heavy working processes, with medium-low pollutant concentrations. Other substances, for example large particle size dusts or liquids, are not suitable for being extracted with the LAB series arms and may generate malfunctions during the ordinary use of the equipment.


Typical environment

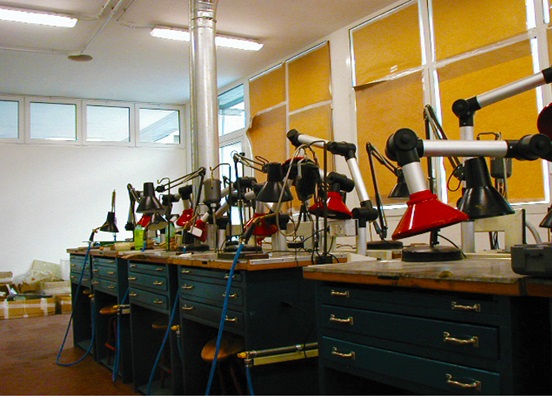

Workshop environment - extraction of soldering fumes micro-particulates, vapours odours.

Salons

Suitable for extraction of fumes or micro-particles generated by non-heavy working processes, with medium-low pollutant concentrations. Not suitable for large particle size dusts or liquids.

Inclusions

  • Articulated arm
  • Please note: nozzles and brackets must be ordered separately

Accessories

Required

Nozzle

Bracket

Optional

Painted steel bracket for wall OR bench fitting

Conical nozzle

Standard nozzle

Transparent nozzle

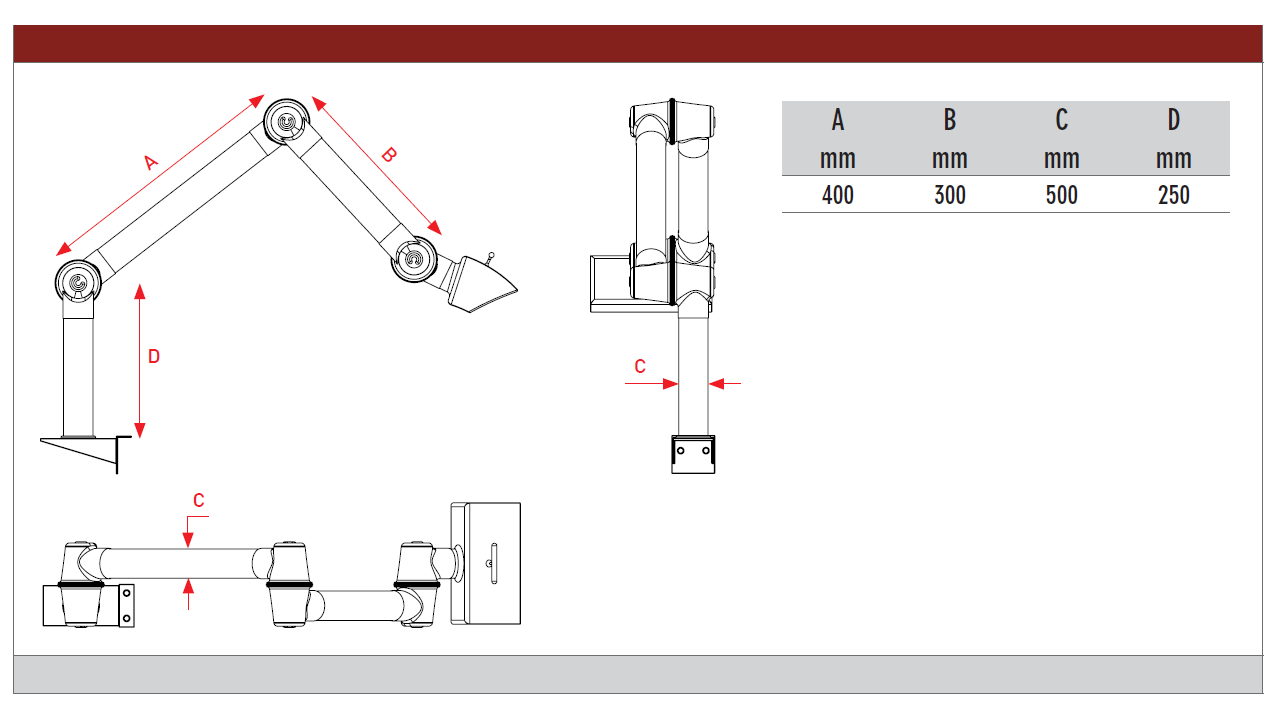

Technical details

Extraction Flow Rate 90-120m3/h
System Losses 630 Pa
Support Type External
Mount Type Ceiling | Wall
Hood Type Standard
Diameter 50mm
Length 1m

Typical environment

Workshop environment - extraction of soldering fumes micro-particulates, vapours odours.

Salons

Suitable for extraction of fumes or micro-particles generated by non-heavy working processes, with medium-low pollutant concentrations. Not suitable for large particle size dusts or liquids.

Manufacturer / Supplier

AerService Equipment

Packaging

Weight: 8kg
Height: 280mm
Width: 810mm
Depth: 230mm
