Plymoth P-011 P-Max Fan

SKU: P-011

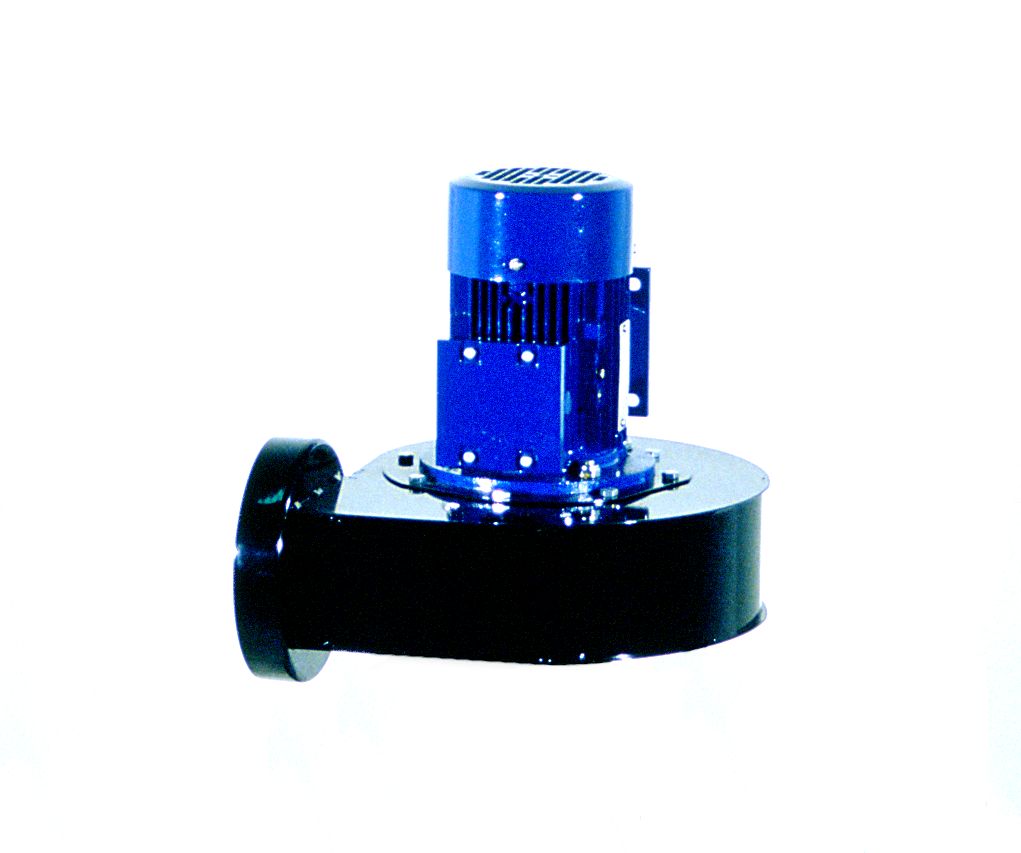

Product shot of the Plymoth P-Max fan on a white background
Designed to fit directly onto the wall bracket of Plymoth fume extraction arms, or comes with a mounting bracket

Plymoth P-011 P-Max Fan

SKU: P-011
Fan (0.37kW, 1 or 3 Phase) for use with fume extraction arms

Key features

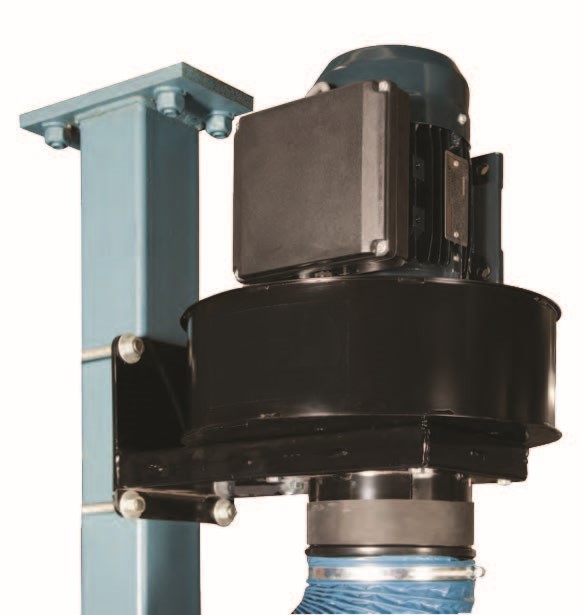

Wall or pole mounted. 0.37kW, 1 or 3 Phase, 1300m3, FIO

Manufacturer / Supplier

Plymoth

The P-Max fan is designed for extracting smoke, gas and lighter dust, and is ideal for the safe removal of welding fumes (local exhaust ventilation). It is designed to fit directly onto the wall bracket of the Plymoth ALFI extraction arms, or together with a mounting bracket.

Other fan sizes to suit the Plymoth ALFI retractable extraction arms:

  • P-Max fan P-012 - 0.75kW | 1 Phase or 3 Phase | 2100m³/hr FIO
  • P-Max turbo fan P-013 - 0.75kW | 3 Phase | 2100m³/hr (do not run FIO)
  • P-Max turbo fan P-015 - 0.75kW | 1 Phase | 2100m³/hr (do not run FIO)
  • P-Max turbo fan P-032 – 1.1kW | 3 Phase | 2100m³/hr FIO

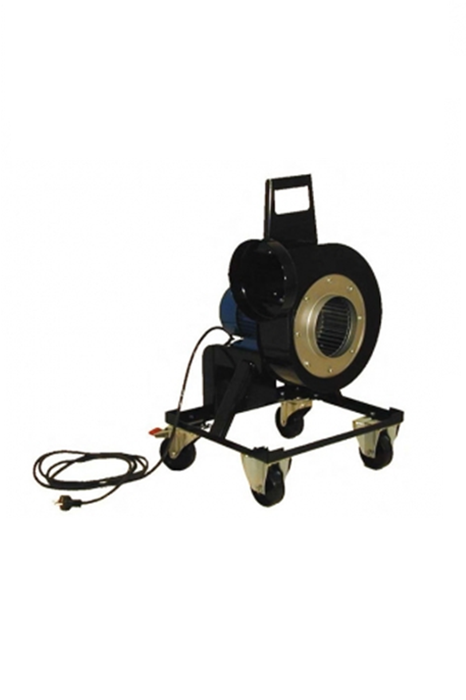

Mobile option - also available on a mobile frame with wheels, handle, inlet spigot, circuit breaker and isolator, 4m cable with plug (see Mobile fan P-324)

Hazardous and explosive fumes extraction - options also available - ask our sales team for more information.


Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Inclusions

P-Max fan, fan case and motor

Outlet is round with a diameter of 200 mm

Plug and lead not included

Accessories

Required

Flexible extractor arms can be ordered separately to suit the size required (160mm or 200mm diameter; length 1.5 - 9 metres)

Technical details

Power Supply (V/Phase/Hz) 240/1/50 | 415/3/50
Free Inlet and Outlet Yes
Dimensions Fan dimensions
Performance Curves Fan Performance Curves

Typical environment

Workers requiring at-source fume extraction: welders; schools; workshops; hazardous and other specialised environments including welding, grinding, soldering, food processing, chemicals; vehicle exhaust emissions.

Manufacturer / Supplier

Plymoth

Packaging

Weight: 18kg
Height: 475mm
Width: 430mm
Depth: 420mm
