Plymoth P-343 Super-M Fume Extraction Arm (ATEX Stainless Steel)

SKU: P-343

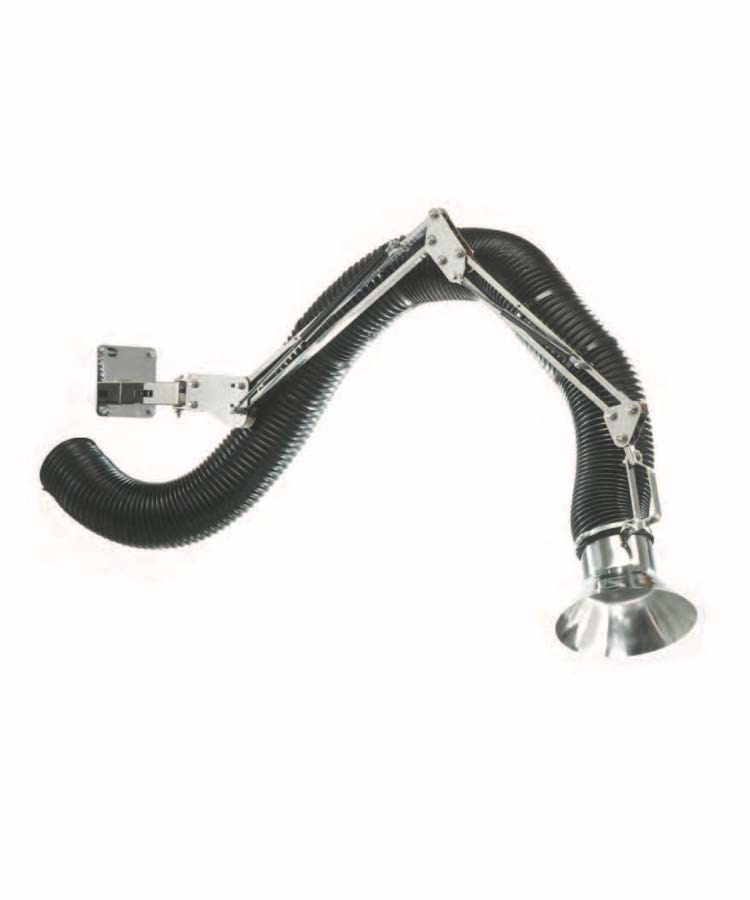

Product shot of the Plymoth Super-M ATEX fume extraction arm with external support and hood.
Made of acid proof stainless steel which is mirror polished

Plymoth P-343 Super-M Fume Extraction Arm (ATEX Stainless Steel)

SKU: P-343

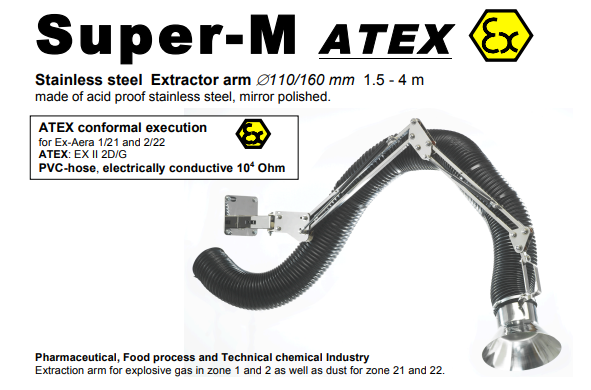

Self-supporting articulated ES fume extraction arm in stainless steel for hazardous zone environments (zones 1 & 2) and dust zone 21 & 22

Key features

Stainless steel fume extraction arm - ATEX: EXII 2D/G

Manufacturer / Supplier

Plymoth

The Super-M ATEX fume extraction arm is made for the toughest work environments. Every detail is made of acid-proof, mirror-polished stainless steel - wall bracket, parallelogram arms, handle, hood, damper, bolts, nuts, washers – all of it! The external hydraulically suspended parallelogram arms are perfectly balanced to make the hood incredibly easy to move and 100% stable in all positions.

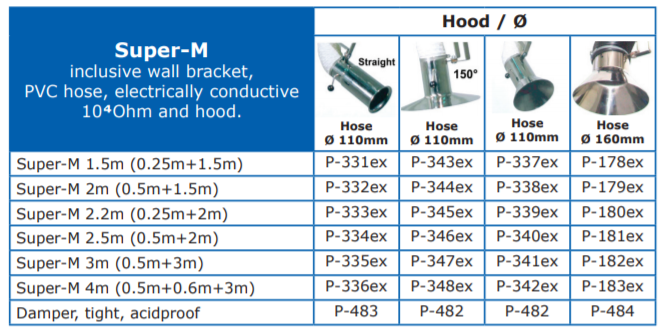

Straight hood - for dust

67o hood - for smoke

150o hood - for gases (cyclone effect)

Sealed - all tube ends are sealed for maximum hygiene


Typical environment

Pharmaceutical, food process, technical chemical industries

Inclusions

Wall bracket

PVC hose - electrically conductive 104 Ohm

Hood

Accessories

Required

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Damper

Filter

Technical details

Support Type External
Diameter 110mm
Length 1.5 (0.25m + 1.5m)m

Typical environment

Pharmaceutical, food process, technical chemical industries

Manufacturer / Supplier

Plymoth

Packaging

Weight: 23kg
Height: 3000mm
Width: 1355mm
Depth: 3800mm
