Plymoth P-367 Super-PM Fume Extraction Arm (ATEX Galvanised)

SKU: P-367

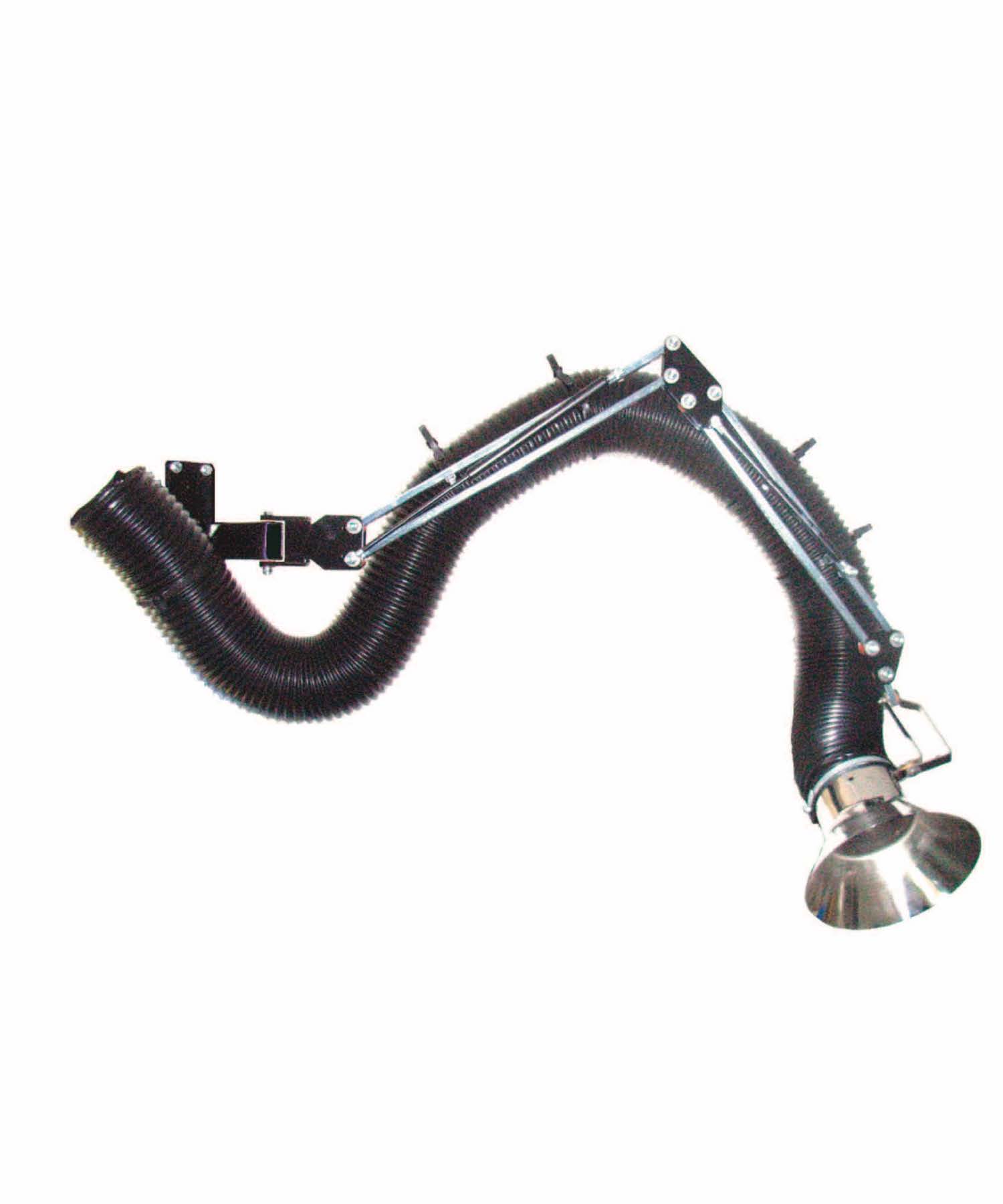

Product shot of the Plymoth Super-PM ATEX Fume Extraction Arm with external support and hood
Galvanised for hazardous zone environments, self-supporting (external support)

Plymoth P-367 Super-PM Fume Extraction Arm (ATEX Galvanised)

SKU: P-367
Self-supporting articulated ES fume extraction arm in galvanised for hazardous zone environments (zones 1 & 2) and dust zone 21 & 22

Key features

Galvanised extractor arm - ATEX: EX II 2D/G

Manufacturer / Supplier

Plymoth

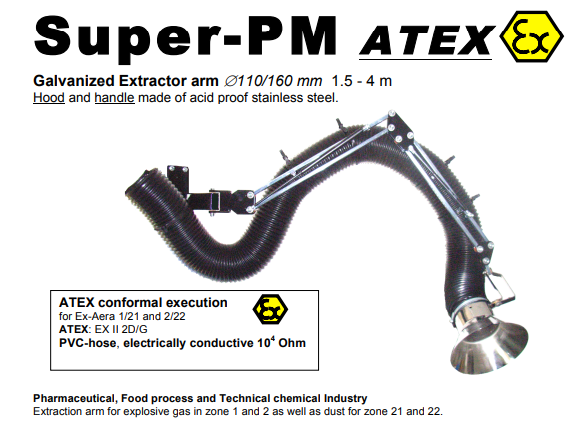

The Super-PM ATEX fume extraction arm extracts smoke, dust and gases directly at source, before the contamination has spread in the premises and inhaled, for effective local exhaust ventilation. It creates a better work environment, less wear and tear of machinery, and lower cleaning costs. The external hydraulically suspended parallelogram arms are perfectly balanced to make the hood incredibly easy to move and 100% stable in all positions.

ATEX conformal execution - for ex-Aera 1/21 and 2/22

Hood and handle - made of mirror-polished acid-proof stainless steel

Sealed - all tube ends are sealed for maximum hygiene

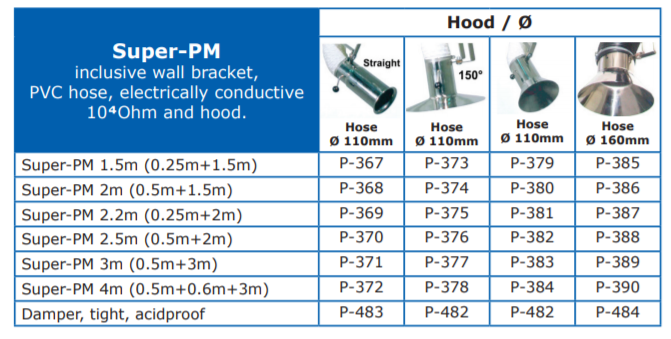

Dia.110 mm hose and hoods - Straight hood is for dust, 67o hood is for smoke, and the 150o hood is for gases (cyclone effect which enhances capacity to extract gases)

Dia.160 mm hose and hood - available


Typical environment

Pharmaceutical, food process, technical chemical industries

Inclusions

Wall bracket

PVC hose - electrically conductive 104 Ohm

Hood

Accessories

Required

You will require an extraction fan and possibly a filter; you may have an existing system, or you can contact the Dynamic Engineering sales team to determine what fan will work best for your situation.

Optional

Damper

Filter

Technical details

Support Type External
Diameter 110mm
Length 1.5 (0.25m + 1.5m)m

Typical environment

Pharmaceutical, food process, technical chemical industries

Manufacturer / Supplier

Plymoth

Packaging

Weight: 23kg
Height: 3800mm
Width: 1355mm
Depth: 3000mm
