Offers both hands-free and manual blow down for the most optimal cleaning results.
Larger 3kW motor
The three-phase fan design delivers a higher volume ir shower at a rate of 1850m3/h

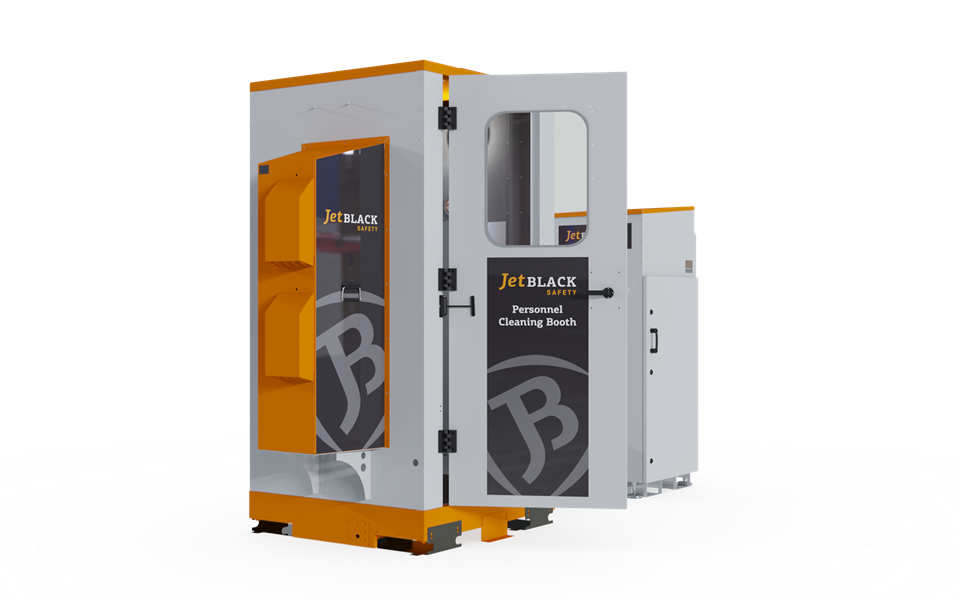

Two doors for convenient walk-through functionality and effective clean zone management.

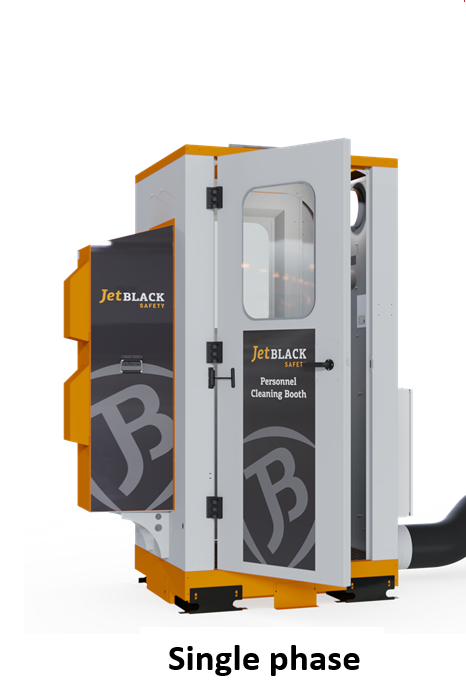

Single-phase power supply is also available (see BH05-C1+JS-606-C1-50).

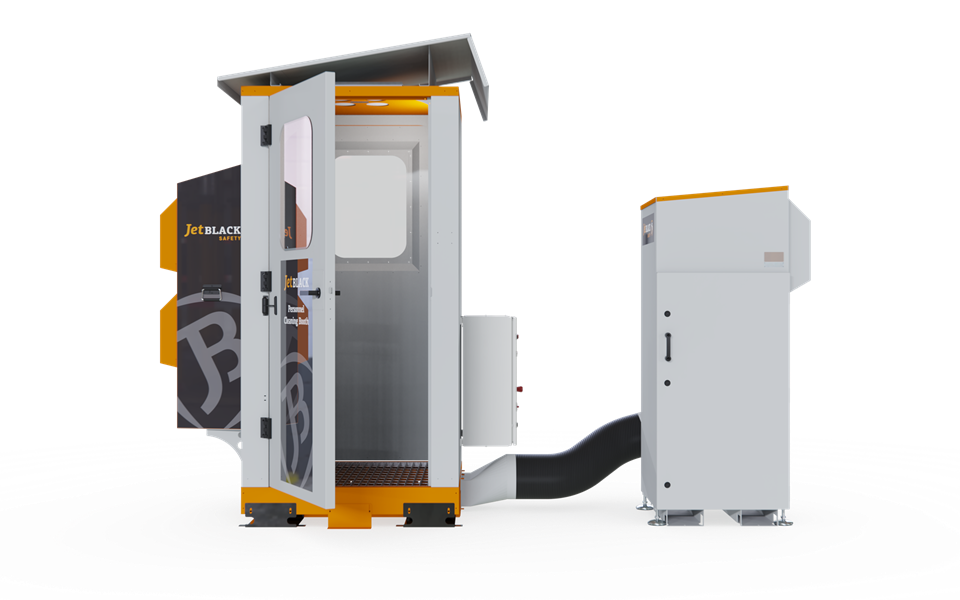

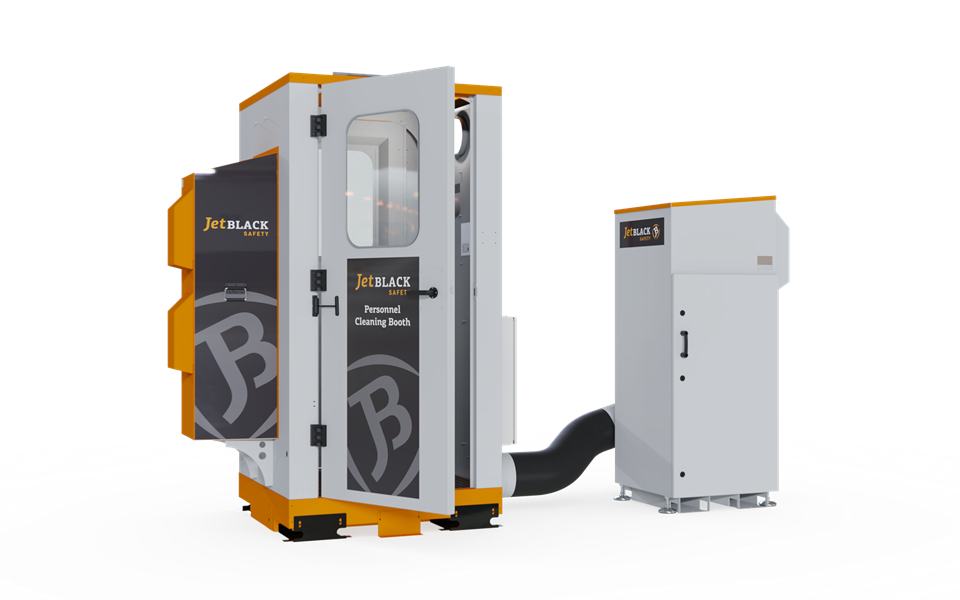

The JetBlack Safety Hybrid Personnel Cleaning Booth is a self-contained, semi-automatic de-dusting system guaranteed to meet or exceed OHS requirements. It removes, extracts, AND collects dust and debris from workers' dirty clothes. It is electric and uses no compressed air – contaminated workers can continuously enter and exit the unit without having to wait for a compressor tank to re-fill. It is a completely safe alternative to using compressed air (see Dangers of Using Compressed Air) and is much easier to use than alternative vacuum systems.

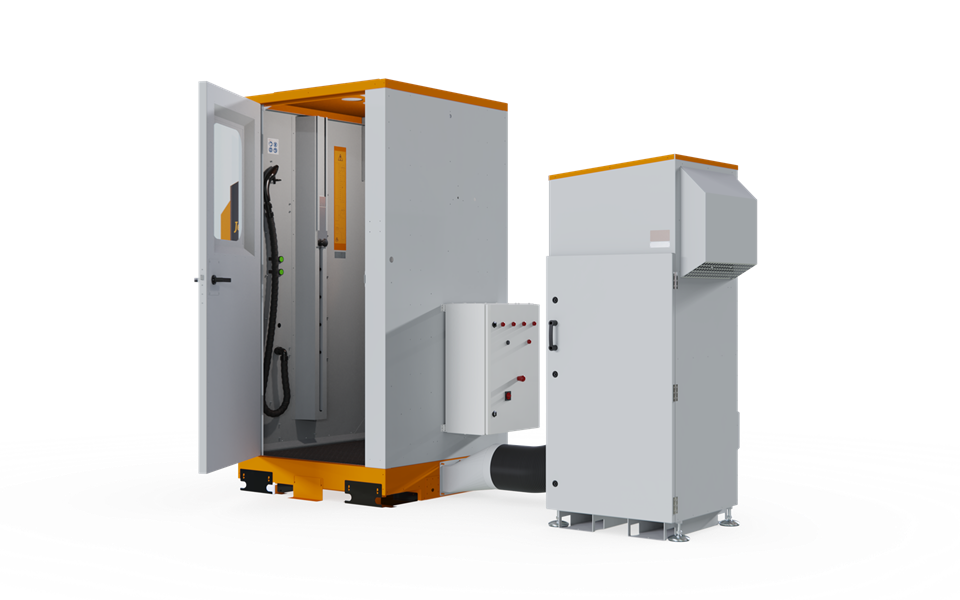

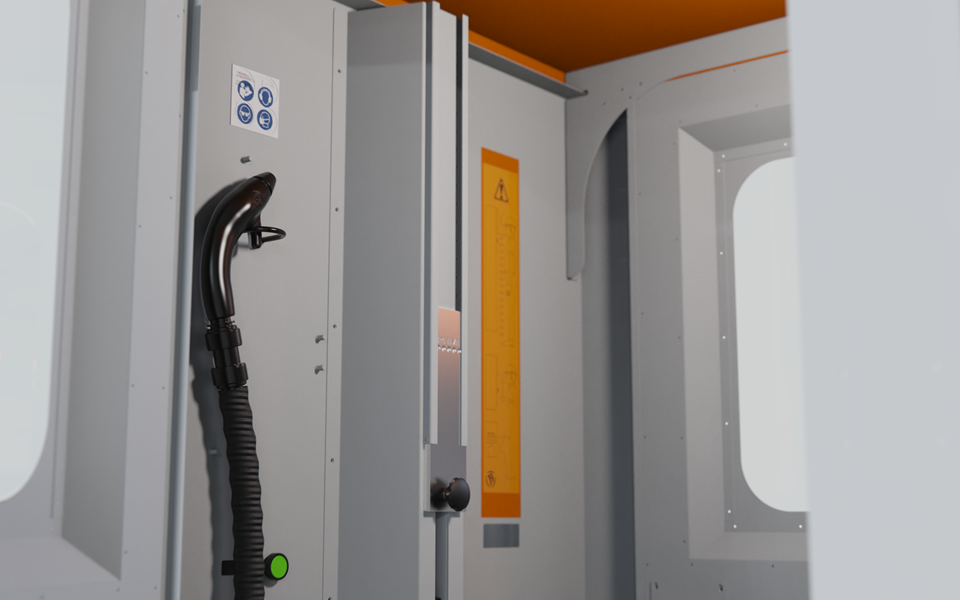

The JetBlack Safety Hybrid Personnel Cleaning Booth incorporates a 6 nozzle reciprocating motion air delivery system which delivers a high volume of filtered air at low pressure, sufficient to remove powders and dust effectively and safely, hands-fee, even when directed at exposed skin. And to gain extra cleaning flexibility, a hand-held JetBlack hose and nozzle is also included inside the booth to enable full cleaning coverage.

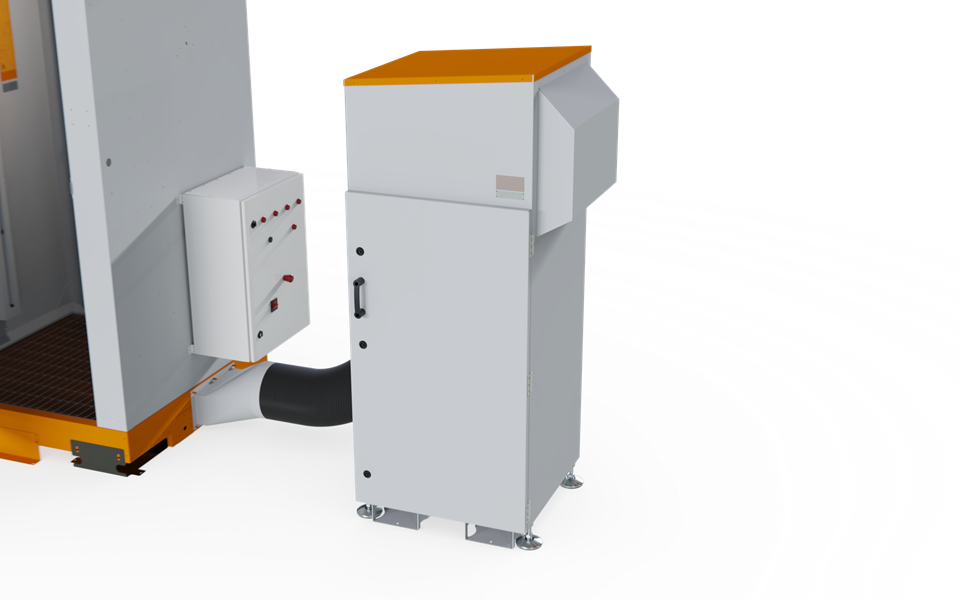

All dust and fibres are drawn down and away through the floor by an extractor system and collected either in a HEPA extractor or vented directly into your existing exhaust system.

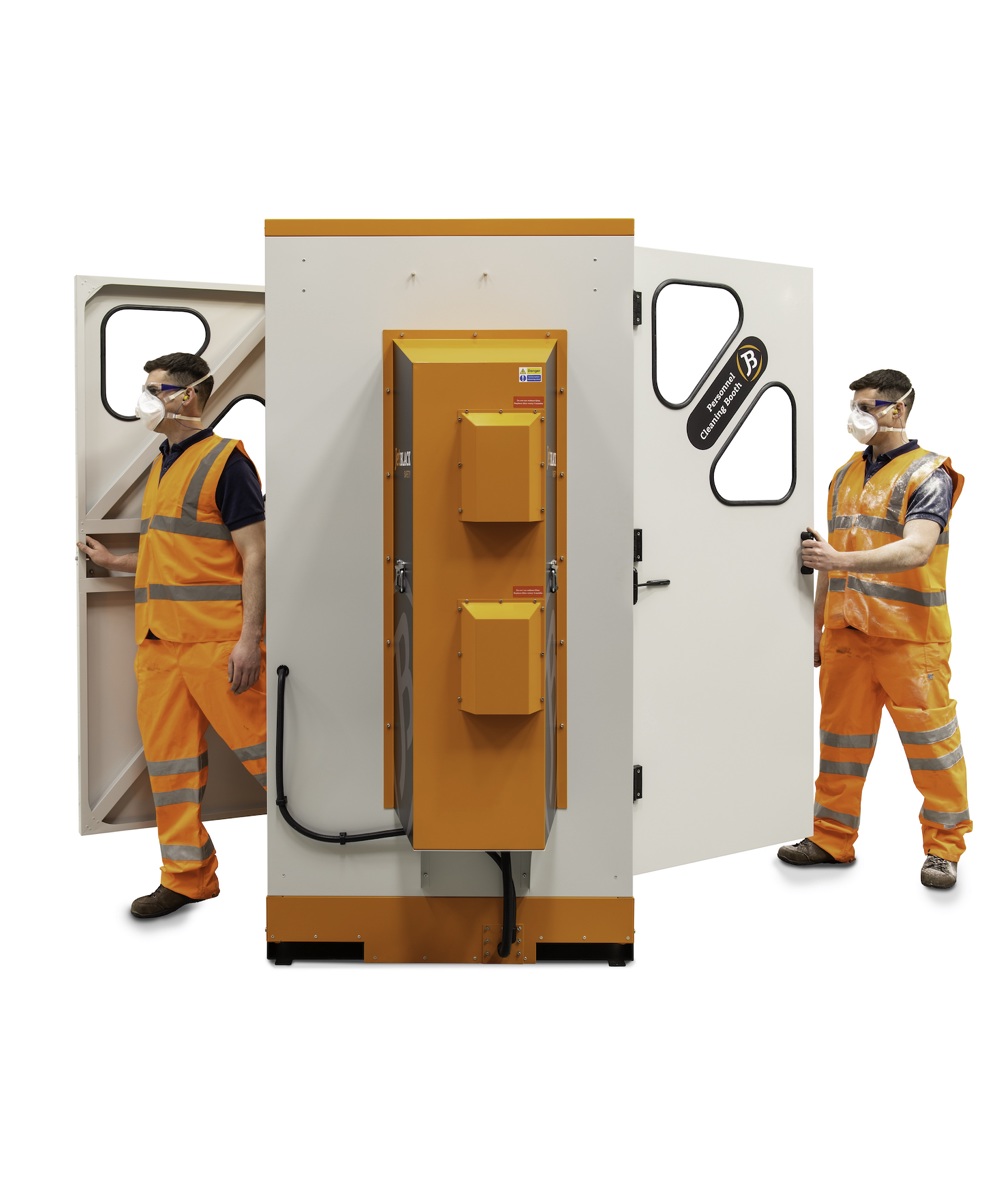

The booth comes standard with twin doors, but workers can enter and exit out the same door if preferred.
Safe - Blower-driven air (DOES NOT use compressed air)
Powerful - 6 nozzle reciprocating motion air delivery system for an ‘air shower’ effect
Tough - Modular construction
Effective - Hands-free cleaning with the flexibility of a hand-held hose & nozzle for full coverage
Three-phase power - Provides enhanced performance and efficiency as well as distributing the electrical load more effectively. Single-phase power supply is also available (see BH05-C-1+JS-606-C1-50).
Internal or external use - Roof cover available
COMPARING THE SINGLE-PHASE BOOTH WITH THE 3-PHASE BOOTH
Single-Phase Booth | Three-Phase Booth |
| Motor power: 1.5kW | Motor power: 3kW |
| 230V, 50Hz as standard | 400V, 50Hz as standard |
| 1500m3/hr air flow performance | 1850m3/hr air flow performance |
| (10 air changes / min) | (12 air changes/min) |
| Noise level 84.2dB(A)@ 1m | Noise level 84.2dB(A)@ 1m |
Mining above and below ground, mineral processing facilities, construction sites, power stations, clean-room manufacturing facilities, quarrying/stone/aggregate facilities, plastic and rubber production, cement and plasterboard manufacturing, paper and tissue production, carpet and general textile manufacturing, fibre moulding, anywhere that has dust and other airborne solids.
Perfect for high performance industrial settings requiring consistent and reliable operations.
Please note: at this stage, hazardous zone environments cannot be serviced.

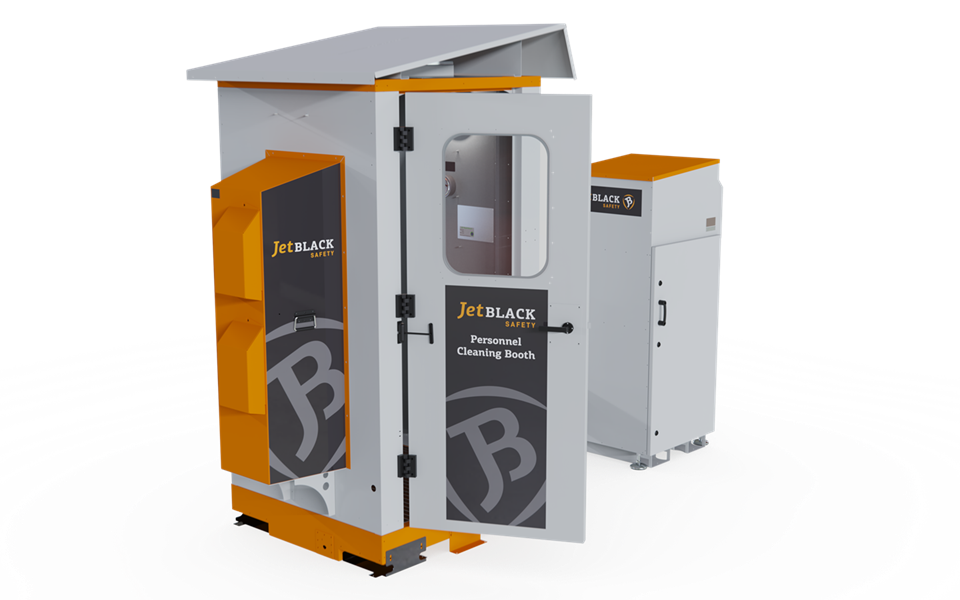

External roof cover kit
Footbrush
| Motor Power | 3kW |
| Power Supply (V/Phase/Hz) | 415/3/50 |
| Extraction Flow Rate | 1850m3/h |
| Filter | The extractor features a fabric pocket pre-filter which is F9 rated. This protects the HEPA H14 filter ensuring longer asting life and minimum maintenance.
|
| Noise | 84 dBa
|
| Air Change | 12 /min |
Mining above and below ground, mineral processing facilities, construction sites, power stations, clean-room manufacturing facilities, quarrying/stone/aggregate facilities, plastic and rubber production, cement and plasterboard manufacturing, paper and tissue production, carpet and general textile manufacturing, fibre moulding, anywhere that has dust and other airborne solids.
Perfect for high performance industrial settings requiring consistent and reliable operations.
Please note: at this stage, hazardous zone environments cannot be serviced.
